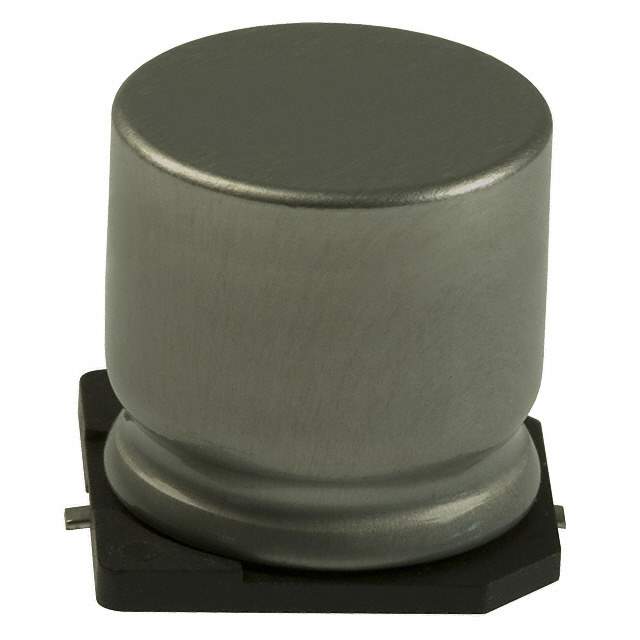

EEE-FK1E222AM Real Image
Same model may have multiple batches, images only for reference.

EEE-FK1E222AM

Part No EEE-FK1E222AM
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description CAP ALUM 2200UF 20% 25V SMD / 2200 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Capacitance 2200 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive, High Temperature Reflow
Ripple Current @ Low Frequency 1.35 A @ 120 Hz
Ripple Current @ High Frequency 1.8 A @ 100 kHz
Impedance 35 mOhms
Size / Dimension 0.630" Dia (16.00mm)
Height - Seated (Max) 0.669" (17.00mm)
Surface Mount Land Size 0.669" L x 0.669" W (17.00mm x 17.00mm)
Mounting Surface Mount
Case / Package Radial, Can - SMD
Base Product Number EEE-FK
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number PCE4846CT,PCE4846DKR,EEEFK1E222AM,PCE4846TR
Standard Package 125
Win Source Part Number 1330852-EEE-FK1E222AM
Ultra Librarian 3D Model Ultra Librarian EEE-FK1E222AM CAD Model

Description

The Panasonic Electronic Components 1330852-EEE-FK1E222AM aluminum electrolytic capacitor is a high-quality component designed for use in automotive and high-temperature reflow applications.

  • Capacitance: 2200μF
  • Voltage Rating: 25V
  • Tolerance: ±20%
  • AEC-Q200 Rated: AEC-Q200 rated
  • Surface Mount Land Size: 0.669" L x 0.669" W (17.00mm x 17.00mm)
  • Height Seated: 0.669" (17.00mm)
  • Case/Package: Radial, can - SMD
  • Compliance: ROHS3 compliant
  • Ripple Current: 1.35 A @ 120 Hz and 1.8 A @ 100 kHz
