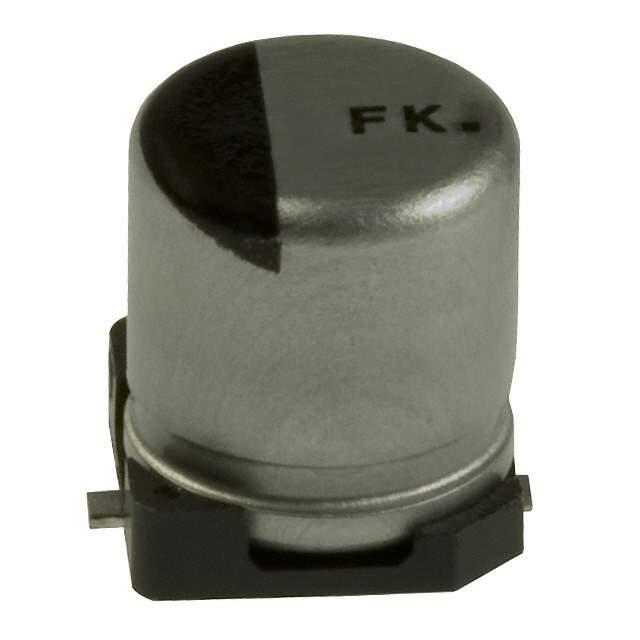

Same model may have multiple batches, images only for reference.

EEE-FK0J470R

Get a Quote

Part No	EEE-FK0J470R
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 47UF 20% 6.3V SMD / 47 µF 6.3 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Panasonic Electronic Components
Series	FK
Package	Tape & Reel
Capacitance	47 µF
Tolerance	±20%
Voltage - Rated	6.3 V
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	120 mA @ 120 Hz
Ripple Current @ High Frequency	160 mA @ 100 kHz
Impedance	700 mOhms
Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.240" (6.10mm)
Surface Mount Land Size	0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting	SMD (SMT)
Package / Case	Radial, Can - SMD
Base Product Number	EEE-FK
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	EEE-FK0J470R-ND,PCE3769TR,EEEFK0J470R,Q2042751,Q4244145,PCE3769DKR,PCE3769CT
Standard Package	1,000
Win Source Part Number	971713-EEE-FK0J470R
Ultra Librarian 3D Model	Ultra Librarian EEE-FK0J470R CAD Model

Description

The Panasonic Electronic Components FK series capacitor, part number 971713-EEE-FK0J470R, is a surface mount aluminum electrolytic capacitor with a capacitance of 47 µF and a voltage rating of 6.3 V.

Capacitance: 47 µF
Voltage Rating: 6.3 V
Tolerance: ±20%
AEC-Q200: Rated for AEC-Q200 applications
Height: 0.240" (6.10mm)
Surface Mount Land Size: 0.209" L x 0.209" W (5.30mm x 5.30mm)
Package/Case: Radial, Can - SMD
Application: Automotive
ESR (Equivalent Series Resistance): 700 mOhms
Lifetime: 2000 hours @ 105°C
Polarization: Polarized
Ripple Current: 120 mA @ 120 Hz and 160 mA @ 100 kHz
