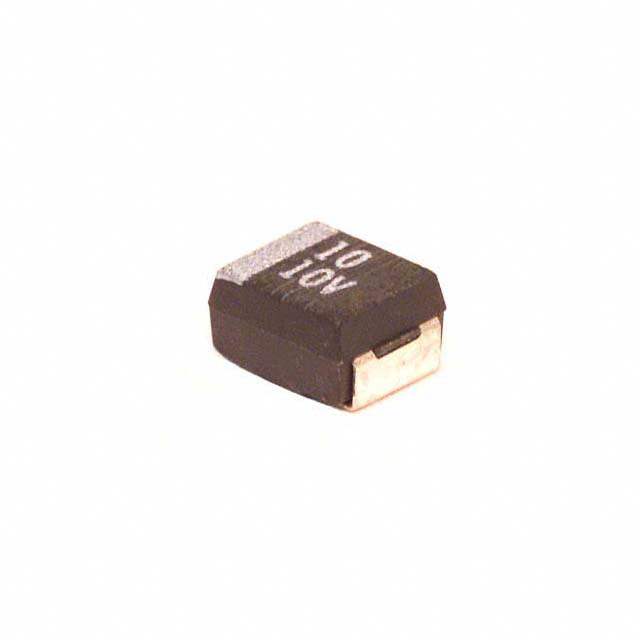

ECS-T1AX106R Real Image
Same model may have multiple batches, images only for reference.

ECS-T1AX106R

Part No ECS-T1AX106R
Manufacturer Panasonic
Catalog Tantalum Capacitors
Description CAP TANT 10UF 10V 20% 1411
Datasheet
ECS-T1AX106R Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Capacitance 10μF
Tolerance ±20%
Voltage Rating 10V
Type Molded
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Dimension 0.138" L x 0.110" W (3.50mm x 2.80mm)
Height - Seated (Max) 0.075" (1.90mm)
Manufacturer Size Code X
Features General Purpose
Win Source Part Number 112070-ECS-T1AX106R
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Industrial, Automotive, Power Management, Consumer Electronics, Portable Devices
Ultra Librarian 3D Model Ultra Librarian ECS-T1AX106R CAD Model

Description

Overview of ECS-T1AX106R

The ECS-T1AX106R is a robust and versatile electronic component, ideal for a wide range of applications. It is highly reliable and designed to meet the demanding needs of modern electronics projects.

  • Capacitance: 10 μF
  • Voltage Rating: 25V
  • Tolerance: ±20%
  • Temperature Range: -55°C to 105°C

Key Features and Benefits

  • High capacitance value provides excellent energy storage and smooth energy release.
  • Wide temperature range ensures reliability in extreme conditions.
  • Compact design allows easy integration into various circuit boards and systems.

Applications

  • Power supply circuits
  • DC-DC converters
  • Audio equipment
  • Consumer electronics
