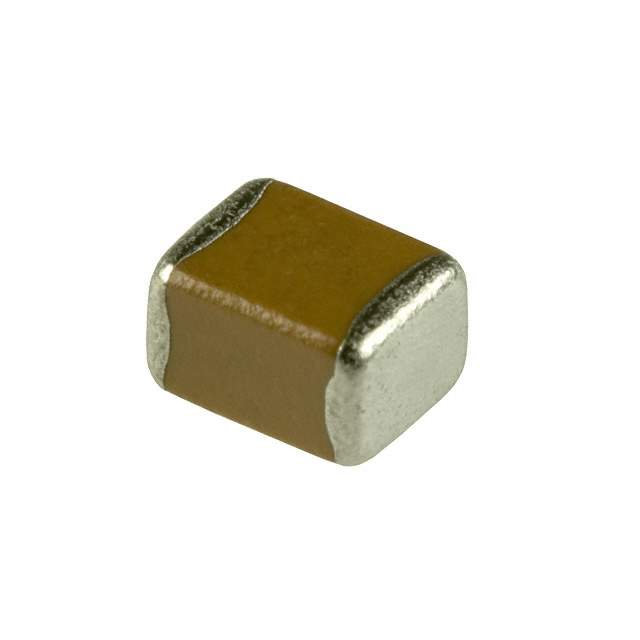

The ECJ4YB1E106M is a multilayer ceramic capacitor manufactured by Panasonic. It is characterized by its high capacitance value, compact size, and reliable performance. These capacitors are commonly used in various electronic circuits for applications such as decoupling, filtering, and bypassing.

Applications:

• Decoupling in power rails of digital circuits
• Filtering in power supplies
• Bypass capacitors for noise reduction
• Signal conditioning circuits
• High-frequency applications

Features:

• Multilayer ceramic construction
• High capacitance value of 10µF (106)
• Voltage rating of 25V
• Y5V temperature characteristic
• Surface mount device (SMD)
• Compact size
• Excellent reliability

Benefits:

• Effective decoupling for stable circuit operation
• Noise reduction in power supplies
• Improved signal integrity
• Space-saving design due to compact size
• Easy assembly with SMD technology
• Cost-effective solution for various applications

Additional Details:

The ECJ4YB1E106M capacitor features a Y5V temperature characteristic, which means its capacitance can vary significantly over the temperature range of -30°C to +85°C. This variation needs to be considered in circuit design. The capacitor is available in a standard EIA size code suitable for automated pick and place equipment. It utilizes a nickel barrier with solder plating for the termination, ensuring good solderability. Panasonic's ECJ series capacitors are designed to be RoHS compliant, meeting environmental standards.

Due to the Y5V characteristic, it is best suited for applications where the temperature is relatively stable or where the capacitance variation is not critical to the circuit's performance. Its high capacitance value makes it suitable for decoupling applications where large amounts of charge need to be stored.
