Same model may have multiple batches, images only for reference.

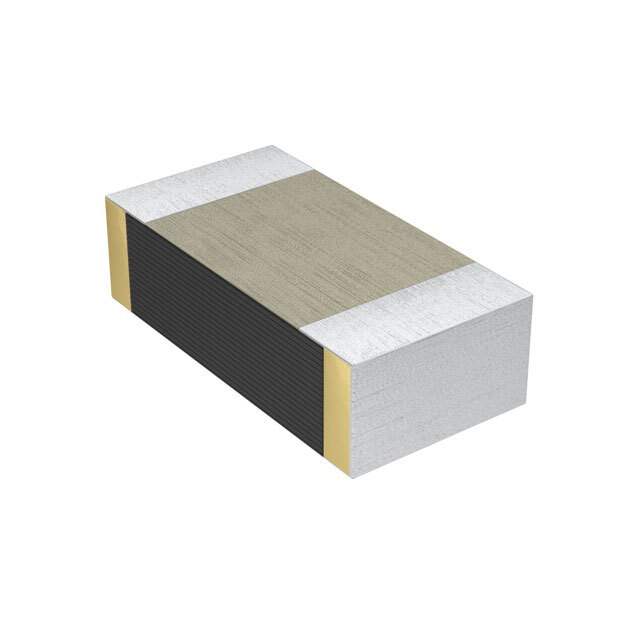

ECH-U1H562GX5 Real Image
Same model may have multiple batches, images only for reference.

ECH-U1H562GX5

Part No ECH-U1H562GX5
Manufacturer Panasonic
Catalog Film Capacitors
Description CAP FILM 5600PF 2% 50VDC 1206
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Capacitance 5600pF
Tolerance ±2%
Voltage Rating - DC 50V
Dielectric Material Polyphenylene Sulfide (PPS), Metallized - Stacked
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.043" (1.10mm)
Termination Solder Pads
Applications General Purpose
Win Source Part Number 000931-ECH-U1H562GX5
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian ECH-U1H562GX5 CAD Model

Description

Features and Benefits:

  • High reliability and endurance under harsh conditions
  • Low profile design facilitates ease of integration
  • Superior voltage handling capabilities

Applications and Projects:

  • Switch-mode power supplies in computing devices
  • Oscillator circuits in precision equipment
  • Input and output filtering in dc-dc converters

The ECH-U1H562GX5 capacitor's versatile characteristics make it a preferred component for a wide range of challenging electronic applications.
