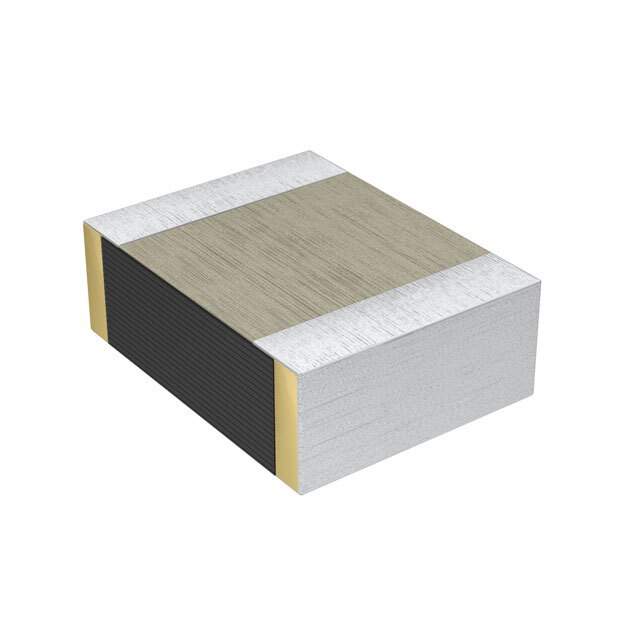

ECH-U1H154JX9 Real Image
Same model may have multiple batches, images only for reference.

ECH-U1H154JX9

Part No ECH-U1H154JX9
Manufacturer Panasonic
Catalog Film Capacitors
Description CAP FILM 0.15UF 5% 50VDC 2416 / 0.15 µF Film Capacitor 30V 50V Polyphenylene Sulfide (PPS), Metallized - Stacked 2416 (6041 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Capacitance 0.15 µF
Tolerance ±5%
Voltage Rating - AC 30V
Voltage Rating - DC 50V
Dielectric Material Polyphenylene Sulfide (PPS), Metallized - Stacked
Temperature Range - Operating -55°C ~ 125°C
Mounting Surface Mount
Case / Package 2416 (6041 Metric)
Size / Dimension 0.236" L x 0.161" W (6.00mm x 4.10mm)
Height - Seated (Max) 0.083" (2.10mm)
Termination Solder Pads
Applications General Purpose
Base Product Number ECH-U1
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0010
Other Part Number PCF1563CT,ECHU1H154JX9,PCF1563TR,PCF1563DKR,Q4088742AB
Standard Package 3,000
Win Source Part Number 1329315-ECH-U1H154JX9
Ultra Librarian 3D Model Ultra Librarian ECH-U1H154JX9 CAD Model

Description

The Panasonic Electronic Components ECH-U1H154JX9 is a film capacitor component that comes in a reel-TR packaging with a standard package of 3,000.

  • Voltage Rating (AC): 30V
  • Voltage Rating (DC): 50V
  • Capacitance: 0.15 µF
  • Tolerance: ±5 percent
  • Dielectric Material: Polyphenylene sulfide (PPS), metallized-stacked
  • Temperature Range: -55°C to 125°C
  • Application: General-purpose
  • Length: 0.236 inches
  • Width: 0.161 inches
  • Height (max): 0.083 inches
  • RoHS3 Compliant: Yes
