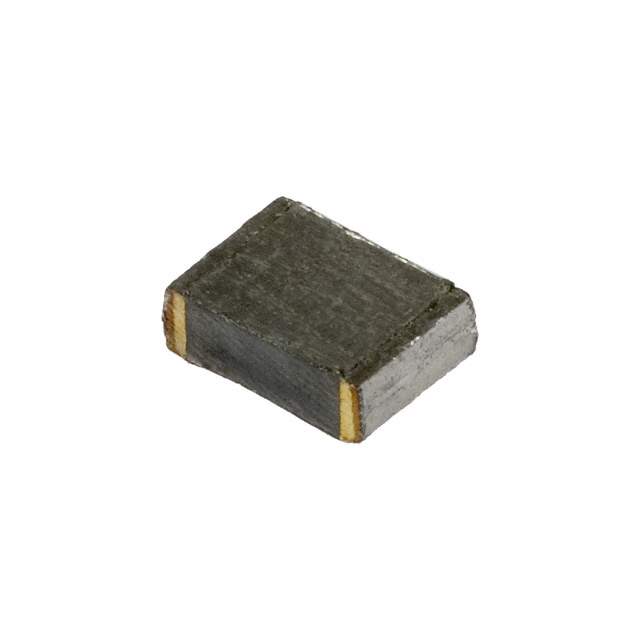

ECH-U1C563JB5 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Estimated Pruduction Lead Time 12 Weeks
Features 0.056 µF Film Capacitor 11V 16V Polyphenylene Sulfide (PPS), Metallized - Stacked 1210 (3225 Metric)
Manufacturer Panasonic
Series ECH-U(B)
Package Reel - TR
Operating Temperature Range -55°C ~ 125°C
Mounting Surface Mount
Package 1210 (3225 Metric)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0010
Other Part Number PCF1085CT, ECHU1C563JB5, PCF1085TR-NDR, ECHU1C563JB, PCF1085DKR, PCF1085TR, PCF1085CT-NDR, ECH-U1C563JB
Quantity per package 2000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 870030-ECH-U1C563JB5
Ultra Librarian 3D Model Ultra Librarian ECH-U1C563JB5 CAD Model

Description

The Panasonic ECH-U(B) series capacitor has a capacitance of 0.056 µF and a voltage rating of 11V.

  • Capacitance: 0.056 µF
  • Voltage Rating: 11V
  • Operating Temperature Range: -55°C to 125°C
  • Capacitor Type: Film Capacitor
  • Construction: Metallized-stacked
  • Material: Polyphenylene Sulfide (PPS)
  • Package: 1210 (3225 Metric)
  • Mounting: Surface Mount
  • Packaging: Reel-TR
  • Pieces per Package: 2000
  • ECCN: EAR99
  • Supply and Demand Status: Limited
  • Estimated Production Lead Time: 12 weeks
  • REACH Status: REACH unaffected
  • HTSUS: 8532.25.0010
