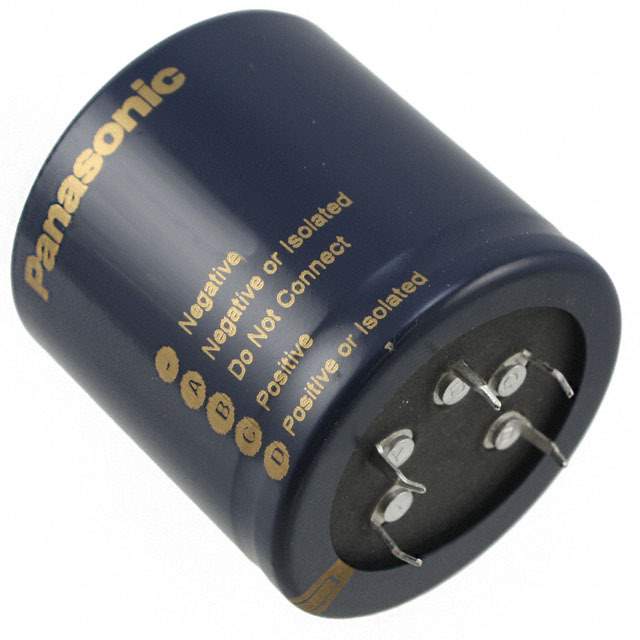

Same model may have multiple batches, images only for reference.

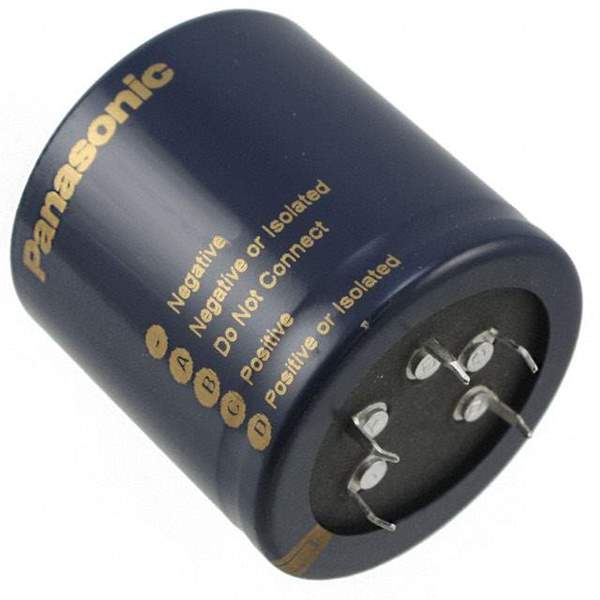

ECE-P2GP102HA Real Image
Same model may have multiple batches, images only for reference.

ECE-P2GP102HA

Part No ECE-P2GP102HA
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description CAP ALUM 1000UF 20% 400V SNAP / Cap Aluminum Lytic 1000uF 400V 20% (50 X 50mm) Snap-In 0.199 Ohm 4760mA 3000h 85°C Bulk
Datasheet
ECE-P2GP102HA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Series T-UP
Packaging Bulk
Part Status Obsolete(EOL)
Capacitance 1000μF
Tolerance ±20%
Voltage Rating DC 400V
ESR (Equivalent Series Resistance) 199 mOhm @ 120Hz
Lifetime @ Temp. 3000 Hrs @ 85°C
Operating Temperature Range -25°C ~ 85°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 4.76A @ 120Hz
Ripple Current - High Frequency 6.664A @ 10kHz
Lead Spacing 0.984" (25.00mm)
Dimension 1.969" Dia (50.00mm)
Height - Seated (Maximum) 1.969" (50.00mm)
Mounting Style Through Hole
Package Radial, Can - Snap-In - 5 Lead
Win Source Part Number 775060-ECE-P2GP102HA
Popularity Medium
Supply and Demand Status Limited
Family Name T-UP
Introduction Date December 20, 2007
ECCN EAR99
Country of Origin Malaysia
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian ECE-P2GP102HA CAD Model

Description

The Panasonic Electronic Components 775060-ECE-P2GP102HA is a radial, can - snap-in - 5 lead capacitor from.

  • Capacitance: 1000μF
  • Tolerance: ±20%
  • ESR: 199 mOhm @ 120Hz
  • Ripple Current: 4.76A @ 120Hz, 6.664A @ 10kHz
  • Operating Temperature Range: -25°C to 85°C
  • Voltage Rating DC: 400V
  • Estimated EOL Date: Obsolete / End of life
