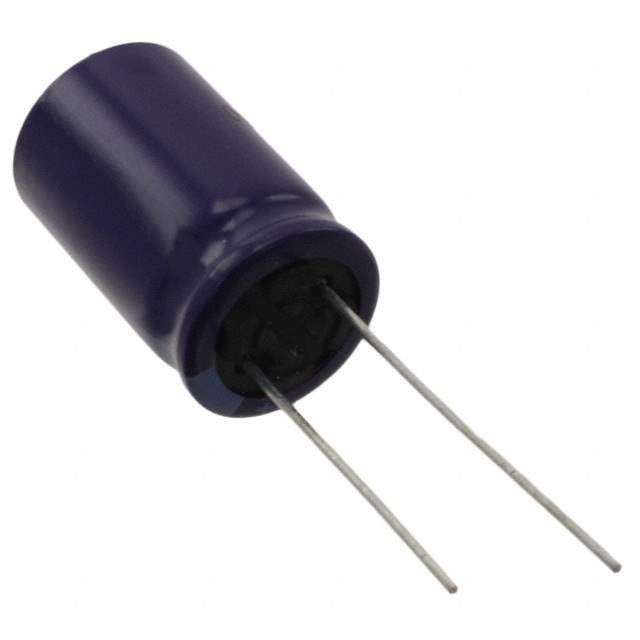

Same model may have multiple batches, images only for reference.

ECA-2GM330

Name: ECA-2GM330
Brand: Panasonic
SKU: 1060854
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	ECA-2GM330
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 33UF 20% 400V RADIAL / 33 µF 400 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Panasonic Electronic Components
Series	M-A
Package	Bulk
Capacitance	33 µF
Tolerance	±20%
Voltage - Rated	400 V
Lifetime @ Temp.	2000 Hrs @ 85°C
Temperature Range - Operating	-25°C ~ 85°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	275 mA @ 120 Hz
Ripple Current @ High Frequency	467.5 mA @ 10 kHz
Lead Spacing	0.295" (7.50mm)
Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	1.063" (27.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Base Product Number	ECA-2GM
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	ECA-2GM330-ND,10-ECA-2GM330,ECA2GM330
Standard Package	100
Win Source Part Number	1060854-ECA-2GM330
Ultra Librarian 3D Model	Ultra Librarian ECA-2GM330 CAD Model

Description

The Panasonic Electronic Components ECA-2GM330 is a radial can aluminum electrolytic capacitor with a capacitance of 33 µF and a voltage rating of 400V.

Capacitance: 33 µF
Voltage Rating: 400V
Tolerance: ±20%
Ripple Current: 275 mA @ 120 Hz and 467.5 mA @ 10 kHz
Height: 27.00mm
Diameter: 16.00mm
Operating Temperature: -25°C to 85°C
Lifetime: 2000 hours @ 85°C in the open market
