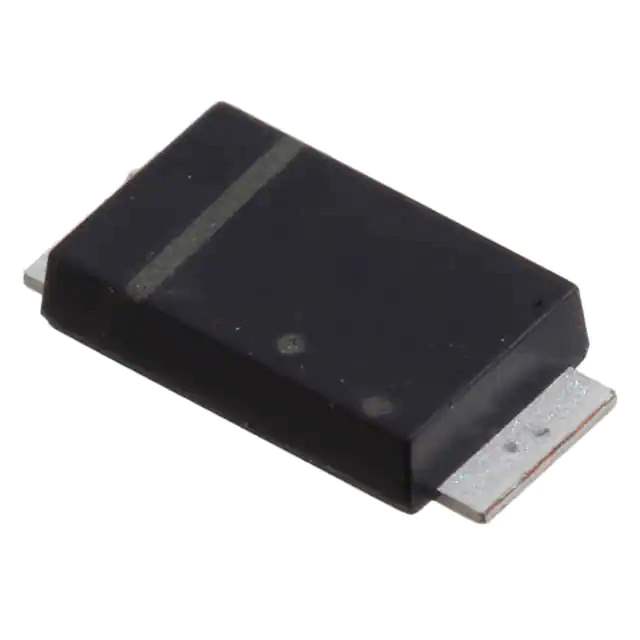

DZ2405600L Real Image
Same model may have multiple batches, images only for reference.

DZ2405600L

Part No DZ2405600L
Manufacturer Panasonic
Catalog Diodes - Zener - Single
Description DIODE ZENER 5.6V 2W TMINIP2
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Zener - Single Zener Diodes
Mfr Panasonic
Package Tape & Reel
Product Status Discontinued
Voltage - Zener (Nom) (Vz) 5.6 V
Tolerance ±5%
Power - Max 2 W
Impedance (Max) (Zzt) 40 Ohms
Current - Reverse Leakage @ Vr 20 µA @ 2 V
Voltage - Forward (Vf) (Max) @ If 1.2 V @ 200 mA
Mounting Type Surface Mount
Package / Case SOD-128
Supplier Device Package TMiniP2-F2-B
Base Product Number DZ24056
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0050
Win Source Part Number 1056567-DZ2405600L
Ultra Librarian 3D Model Ultra Librarian DZ2405600L CAD Model

Description

The Panasonic DZ2405600L is a single zener diode from the diodes - zener category. DZ2405600L from Panasonic Electronic Components.

  • Zener Voltage: 5.6V
  • Tolerance: ±5%
  • Power Rating: 2W
  • Voltage Forward: 1.2V @ 200mA
  • Current Reverse Leakage: 20 µA @ 2V
  • Impedance: 40 ohms
  • Mounting: Surface Mount
  • Package: Tape & Reel
  • Standard Package Quantity: 3,000 pcs
