Same model may have multiple batches, images only for reference.

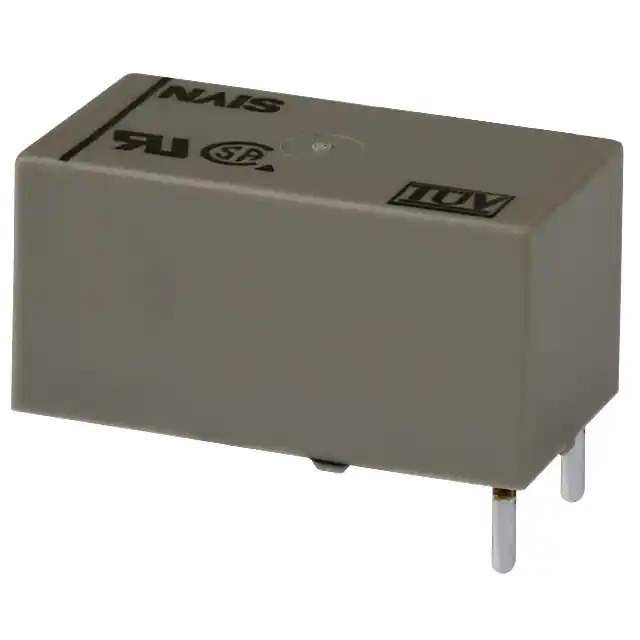

DSP1A-DC24V Real Image
Same model may have multiple batches, images only for reference.

DSP1A-DC24V

Part No DSP1A-DC24V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 8A 24V / General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series DSP
Package Bulk
Product Status Active
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 8 A
Switching Voltage 250VAC, 30VDC - Max
Coil Current 12.5 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 19.2 VDC
Must Release Voltage 2.4 VDC
Operate Time 10 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 60°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 1.92 kOhms
Base Product Number DSP1
Standard Package 50 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 587197-DSP1A-DC24V
Ultra Librarian 3D Model Ultra Librarian DSP1A-DC24V CAD Model

Description

The DSP1A-DC24V is a power relay from Panasonic's DSP series.

  • Type: Single-Pole Single-Throw (SPST-NO)
  • Contact Rating: 8A
  • Coil Voltage: 24VDC
  • Coil Resistance: 1.92 kOhms
  • Operate Time: 10ms
  • Release Time: 5ms
  • Switching Voltage: 250VAC and 30VDC maximum
  • Contact Material: Silver Tin Oxide (AgSnO)
  • Mounting Type: Through-Hole
  • Operating Temperature: -40°C to 60°C
