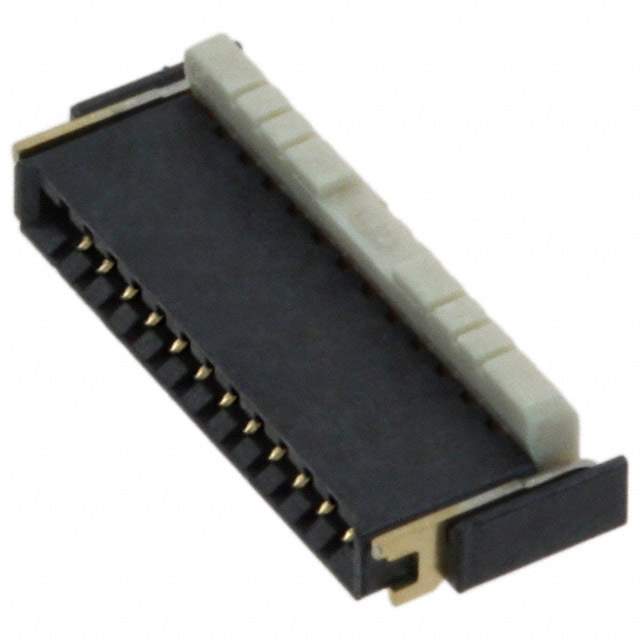

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 10 Weeks
Features 12 Position FFC, FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Manufacturer Panasonic
Series Y5B
Package Reel - TR
Operating Temperature Range -55°C ~ 85°C
Mounting Surface Mount, Right Angle
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Part Number AYF531235-ND, 255-3060-6, 255-3060-1, 255-3060-2
Quantity per package 5000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 862808-AYF531235
Ultra Librarian 3D Model Ultra Librarian AYF531235 CAD Model

Description

The Y5B FFC/FPC Connector is a 12-position connector with top and bottom 0.020" (0.50mm) surface mount and right angle features from Panasonic.

  • Positions: 12
  • Contacts: Top and Bottom 0.020" (0.50mm)
  • Mounting: Surface Mount, Right Angle
  • Popularity Rating: Medium
  • Supply and Demand Status: Limited
  • Estimated Production Lead Time: 10 weeks
