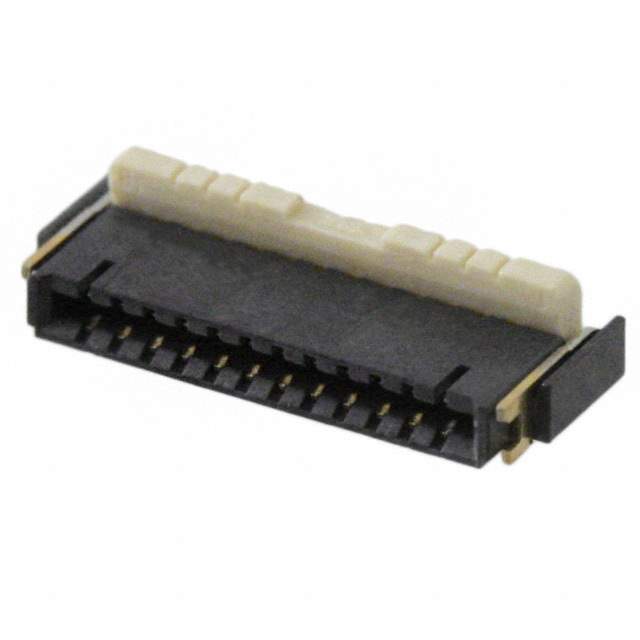

AYF531065 Real Image1 AYF531065 Real Image2
Same model may have multiple batches, images only for reference.
AYF531065 Real Image1 AYF531065 Real Image2
AYF531065 Real Image1 AYF531065 Real Image2
Same model may have multiple batches, images only for reference.

AYF531065

Part No AYF531065
Manufacturer Panasonic
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC 10POS 0.5MM R/A / 10 Position FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors>FFC, FPC (Flat Flexible) Connector Assemblies
Mfr Panasonic
Series Y5BW
Package Tape & Reel
Flat Flex Type FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Top and Bottom
Number of Positions 10
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.039" (1.00mm)
Locking Feature Flip Lock, Backlock
Cable End Type Notched
Contact Material Copper Alloy
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Liquid Crystal Polymer (LCP)
Features -
Voltage Rating 50V
Temperature Range - Operating -55°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A per Contact
Contact Finish Thickness Flash
Housing Color -
Actuator Color -
Mating Cycles 20
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Standard Package 5,000 pcs
Win Source Part Number 1381509-AYF531065
Ultra Librarian 3D Model Ultra Librarian AYF531065 CAD Model

Description

The 1381509-AYF531065 is a FFC, FPC connector assembly designed for flexible flat cable connections. Manufactured by Panasonic, a trusted name in the industry, this connector assembly offers excellent quality and reliability for your electronic designs.

  • Positions: 10
  • Pitch: 0.020" (0.50mm)
  • Contact Finish: Gold
  • Termination: Solder
  • Material: Copper Alloy
  • Voltage Rating: 50V
