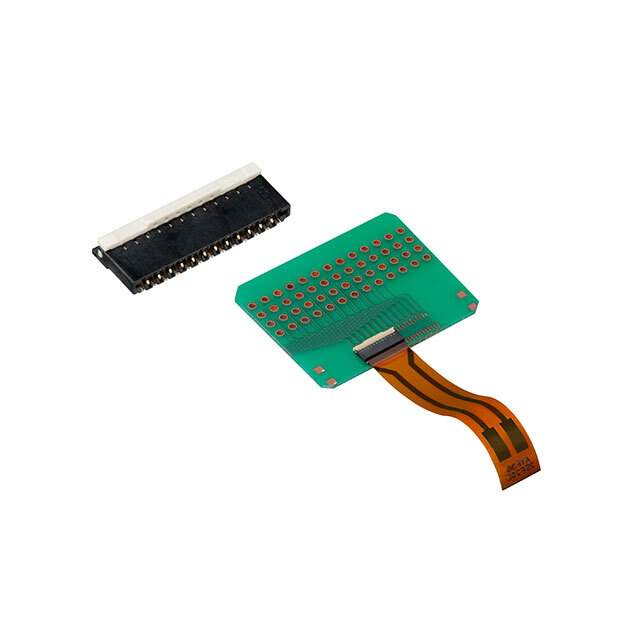

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr Panasonic Electric Works
Series Y3BC
Package Tape & Reel (TR)
Product Status Obsolete
Flat Flex Type FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Top and Bottom
Number of Positions 31
Pitch 0.012" (0.30mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.039" (1.00mm)
Locking Feature Flip Lock, Backlock
Cable End Type Tapered
Contact Material Copper Alloy
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Liquid Crystal Polymer (LCP)
Voltage Rating 50V
Temperature Range - Operating -55°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.2A per Contact
Mating Cycles 20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Standard Package 10,000
Win Source Part Number 963118-AYF363135
Ultra Librarian 3D Model Ultra Librarian AYF363135 CAD Model

Description

The Y3BC series FFC/FPC connector from Panasonic Electric Works has 31 positions and a pitch of 0.012" (0.30mm).

  • Series: Y3BC
  • Positions: 31
  • Pitch: 0.012" (0.30mm)
  • Termination: Solder
  • Contact Finish: Gold
  • Voltage Rating: 50V
  • Height Above Board: 0.039" (1.00mm)
  • Flat Flex Type: FPC
  • Cable End Type: Tapered
  • Locking Feature: Flip lock and backlock
  • Housing and Actuator Material: Liquid crystal polymer (LCP)
  • Material Flammability Rating: UL94 V-0
  • Mounting: Surface mount right-angle
  • Package: Tape and reel (TR)
