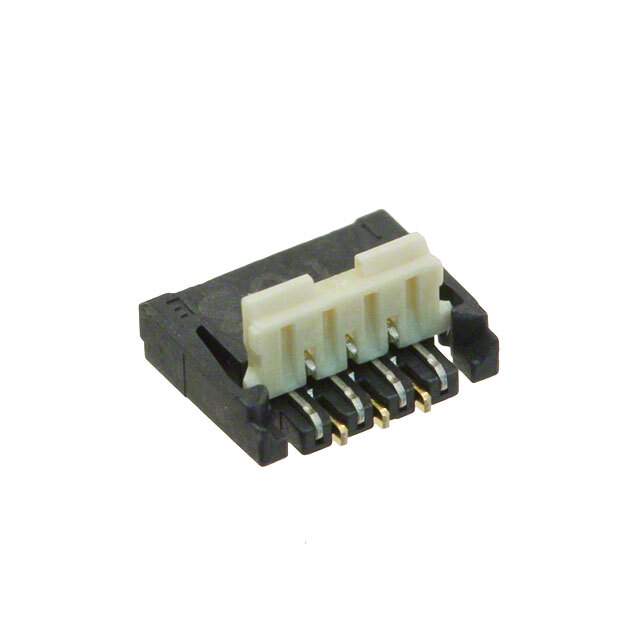

AYF330735

Name: AYF330735
Brand: Panasonic
SKU: 435807
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	AYF330735
Manufacturer	Panasonic
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FPC 7POS 0.30MM R/A
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Panasonic Electric Works
Packaging	Reel - TR
Status	Active
Flat Flex Type	FPC
Mounting	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Top and Bottom
Number of Positions	7
Pitch	0.012" (0.30mm)
Termination	Solder
FFC, FCB Thickness	0.20mm
Height Above Board	0.036" (0.90mm)
Locking Feature	Flip Lock, Backlock
Cable End Type	Tapered
Contact Finish	Gold
Housing Material	Liquid Crystal Polymer (LCP)
Actuator Material	Liquid Crystal Polymer (LCP)
Voltage Rating	50V
Temperature Range - Operating	-55°C to 85°C
Material Flammability Rating	UL94 V-0
Current Rating	0.2A per Contact
Contact Finish Thickness	Flash
Mating Cycles	20
Win Source Part Number	1021148-AYF330735
Popularity	Medium
Supply and Demand Status	Balance
Quantity per package	5k pcs
Ultra Librarian 3D Model	Ultra Librarian AYF330735 CAD Model

Alternative Products

Description

The Panasonic Electric Works 1021148-AYF330735 is a surface-mount, right-angle connector for FPC cables.

Manufacturer: Panasonic Electric Works
Mounting Type: Surface Mount
Orientation: Right Angle
Number of Positions: 7
Pitch: 0.012" (0.30mm)
Termination Type: Solder
Contact Finish: Gold
Contact Finish Thickness: Flash
Voltage Rating: 50V
Current Rating: 0.2A per contact
Housing Material: Liquid Crystal Polymer (LCP)
Actuator Material: Liquid Crystal Polymer (LCP)
Flammability Rating: UL94 V-0
Flat Flex Type: FPC
FFC, FCB Thickness: 0.20mm
Locking Feature: Flip-Lock and Backlock
Cable End Type: Tapered
Mating Cycle: 20
Connector/Contact Type: Contacts, Top, and Bottom
Category: Connectors and Interconnects
Status: Active
Operating Temperature: -55°C to 85°C
Packaging: Reel of 5k pieces
