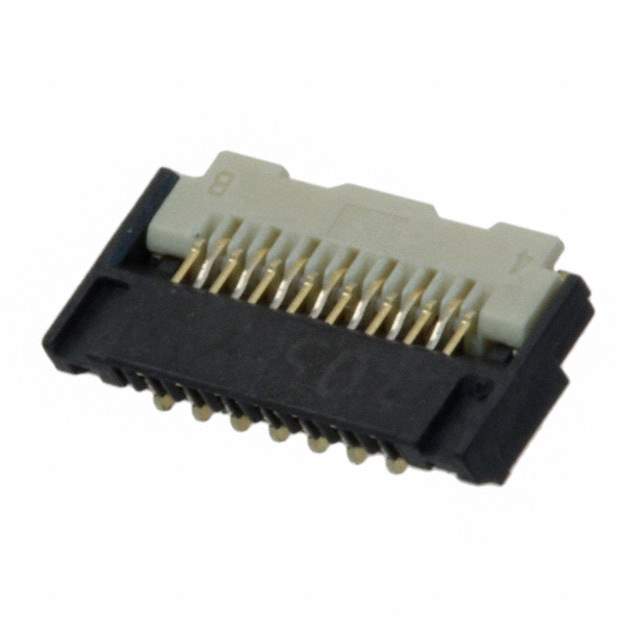

AYF321515 Real Image
Same model may have multiple batches, images only for reference.

AYF321515

Part No AYF321515
Manufacturer Panasonic
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC BOTTOM 15POS 0.30MM R/A / 15 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors>FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Product Status Obsolete
Flat Flex Type FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 15
Pitch 0.012" (0.30mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.035" (0.88mm)
Locking Feature Flip Lock
Cable End Type Tapered
Contact Material Copper Alloy
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Liquid Crystal Polymer (LCP)
Features Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -55°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.2A per Contact
Contact Finish Thickness Flash
Mating Cycles 30
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4051
Other Part Number 2266-AYF321515,255-3049-6,255-3049-1,255-3049-2
Standard Package 5,000
Win Source Part Number 1333384-AYF321515
Ultra Librarian 3D Model Ultra Librarian AYF321515 CAD Model

Description

The Panasonic Electric Works 1333384-AYF321515 is a Zero Insertion Force (ZIF) FFC/FPC connector assembly that features 15 positions with a pitch of 0.012” (0.30mm).

  • Connector/Contact Type: Bottom Contacts
  • Cable End Type: Tapered
  • FFC/FCB Thickness: 0.20mm
  • Locking Feature: Flip Lock
  • Housing and Actuator Material: Liquid Crystal Polymer (LCP)
  • Material Flammability Rating: UL94 V-0
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: Flash
  • Voltage Rating: 50V
  • Current Rating: 0.2A per Contact
  • Mounting: Surface Mount, Right Angle
  • Mating Cycle: 30
  • Temperature Range for Operating: -55°C ~ 85°C
  • Moisture Sensitivity Level (MSL): 1 (unlimited)
  • Product Status: Obsolete
  • Standard Package: 5,000
