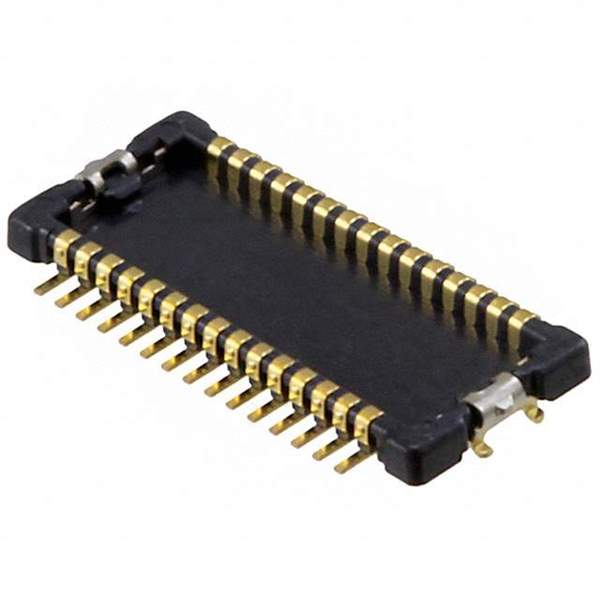

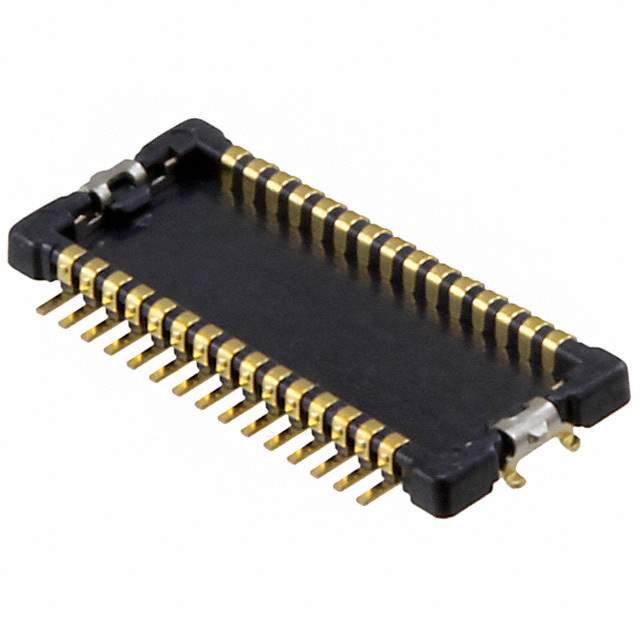

Same model may have multiple batches, images only for reference.

AXK8L30124BG

Name: AXK8L30124BG
Brand: Panasonic
SKU: 435732
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	AXK8L30124BG
Manufacturer	Panasonic
Catalog	Rectangular Connectors
Description	CONN HEADER FPC .4MM 30POS SMD
Datasheet	AXK8L30124BG Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Panasonic Electric Works
Packaging	Reel - TR
Status	Obsolete(EOL)
Connector Type	Header, Outer Shroud Contacts
Number of Positions	30
Pitch	0.016" (0.40mm)
Number of Rows	2
Mounting	SMD (SMT)
Features	Solder Retention
Contact Finish	Gold
Mated Stacking Heights	0.9mm
Height Above Board	0.025" (0.63mm)
Win Source Part Number	1021073-AXK8L30124BG
Popularity	Medium
Supply and Demand Status	Sufficient
Ultra Librarian 3D Model	Ultra Librarian AXK8L30124BG CAD Model

Alternative Products

Description

The Panasonic Electric Works AXK8L30124BG is a connector component that has been discontinued and is no longer available for new designs.

Manufacturer: Panasonic Electric Works
Win Source Part Number: 1021073-AXK8L30124BG
Packaging: reel - TR
Positions: 30
Pitch: 0.016" (0.40mm)
Features: solder retention
Connector Type: outer shroud contact header connector
Rows: 2
Contact Finish: gold
Mated Stacking Heights: 0.9mm
Height Above Board: 0.025" (0.63mm)
Mounting: SMD (SMT)
