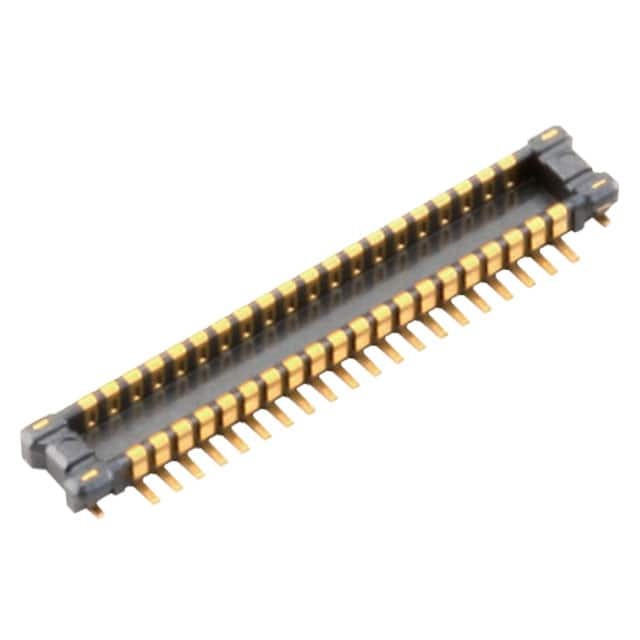

AXF6A4012

Name: AXF6A4012
Brand: Panasonic
SKU: 862744
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	AXF6A4012
Manufacturer	Panasonic
Catalog	Rectangular Connectors
Description	CONN HDR 40POS SMD GOLD / 40 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Panasonic
Series	A35P
Package	Tape & Reel
Product Status	Active
Connector Type	Header, Outer Shroud Contacts
Number of Positions	40
Pitch	0.014" (0.35mm)
Number of Rows	2
Mounting Type	Surface Mount
Features	Solder Retention
Contact Finish	Gold
Mated Stacking Heights	0.8mm
Height Above Board	0.026" (0.65mm)
Base Product Number	AXF6A4
Standard Package	5,000 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	862744-AXF6A4012
Ultra Librarian 3D Model	Ultra Librarian AXF6A4012 CAD Model

Description

The 862744-AXF6A4012 is a rectangular connector array designed for board-to-board connections. It belongs to the A35P series and has 40 positions with a pitch of 0.014" (0.35mm).

Design: Board-to-board connections
Series: A35P series
Positions: 40
Pitch: 0.014" (0.35mm)
Features: Solder retention
Type: Header type with outer shroud contacts
Rows: 2
Contact Finish: Gold
Package: Tape and reel
Standard Package: 5,000 pcs
Mounting: Surface mountable
Height Above the Board: 0.026" (0.65mm)
Status: Active product
Manufacturer: Panasonic
Series Number: AXF6A4
ECCN: EAR99
MSL Level: 1 (Unlimited)
Mated Stacking Height: 0.8mm
