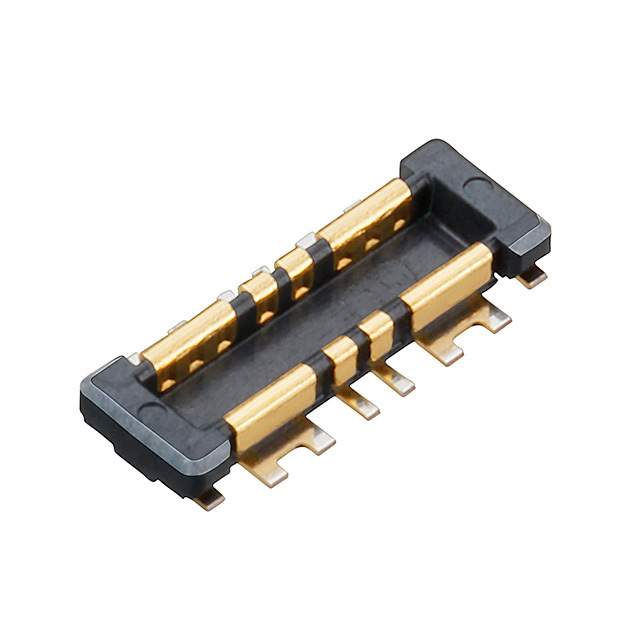

AXF482700 Real Image
Same model may have multiple batches, images only for reference.

AXF482700

Part No AXF482700
Manufacturer Panasonic
Catalog Circular Connectors - Housings
Description CONN HDR 8POS SMD GOLD / 8 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Panasonic Electric Works
Series B02
Package Tape & Reel (TR)
Connector Type Header, Outer Shroud Contacts
Number of Positions 8
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 4.00µin (0.100µm)
Mated Stacking Heights 0.7mm
Height Above Board 0.022" (0.57mm)
Base Product Number AXF482
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 15,000
Win Source Part Number 1009252-AXF482700
Ultra Librarian 3D Model Ultra Librarian AXF482700 CAD Model

Description

The AXF482700 is a rectangular connector array manufactured by Panasonic Electric Works.

  • Positions: 8
  • Solder Retention: enabled
  • Package: tape and reel (TR)
  • Mated Stacking Height: 0.7mm
  • Height above Board: 0.022" (0.57mm)
  • Standard Package: 15,000
  • Type: edge type mezzanine (board to board)
  • Contact Finish Thickness: 4.00µin (0.100µm)
