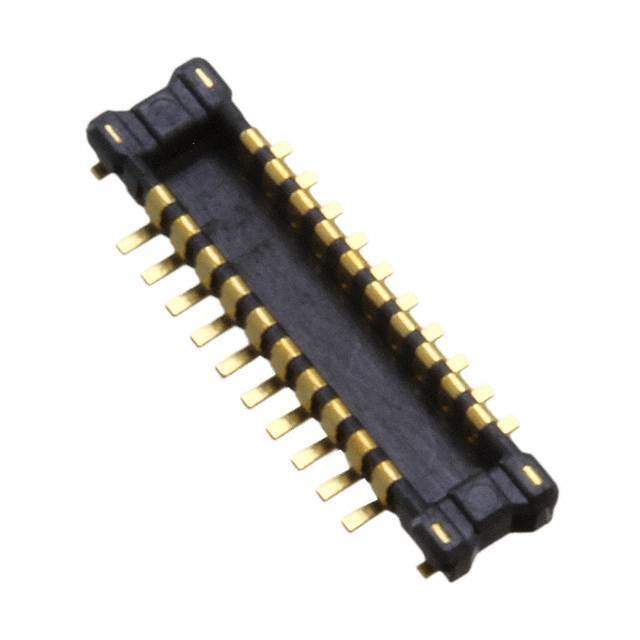

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Connector Type Header, Outer Shroud Contacts
Number of Positions 20
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.8mm
Height Above Board 0.026" (0.65mm)
Win Source Part Number 1020934-AXE620124
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian AXE620124 CAD Model

Description

The Panasonic Electric Works AXE620124 is a header connector manufactured by Panasonic Electric Works.

  • Supply and Demand: Sufficient
  • Positions: 20
  • Packaging: Reel - TR
  • Pitch: 0.016" (0.40mm)
  • Solder Retention: Compliant
  • Height Above Board: 0.026" (0.65mm)
