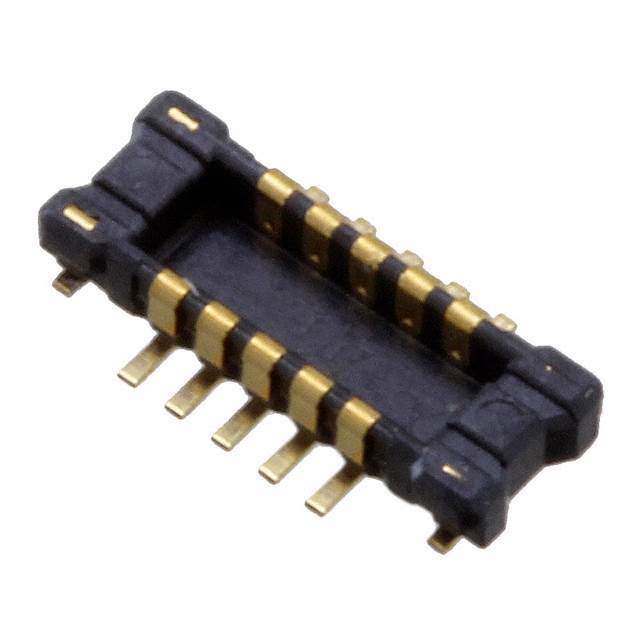

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Connector Type Header, Outer Shroud Contacts
Number of Positions 10
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.8mm
Height Above Board 0.026" (0.65mm)
Win Source Part Number 1020929-AXE610124
Popularity Medium
Supply and Demand Status Balance
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian AXE610124 CAD Model

Description

The Panasonic Electric Works AXE610124 is a 10-position, 0.016" (0.40mm) pitch, SMD (SMT) header with outer shroud contacts.

  • Pitch: 0.016" (0.40mm)
  • Positions: 10
  • Mounting: SMD (SMT)
  • Height Above Board: 0.026" (0.65mm)
  • Mated Stacking Height: 0.8mm
  • Contact Finish: Gold
  • Quantity per Package: 5k pcs.
