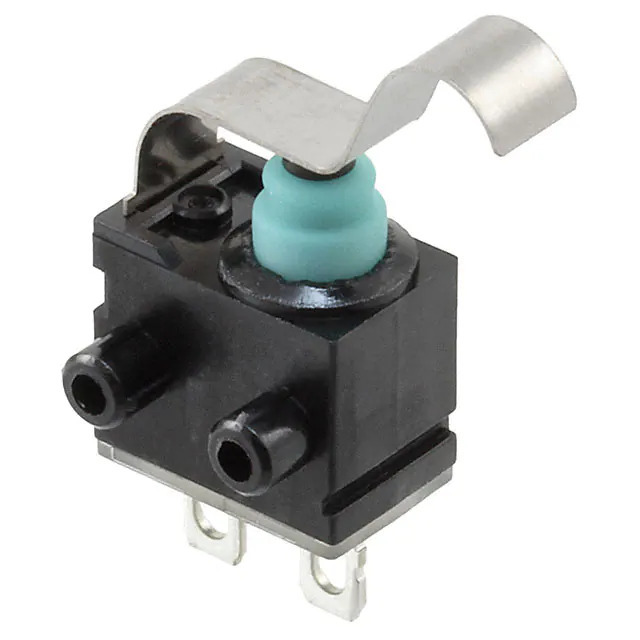

ASQM16438 Panasonic
Same model may have multiple batches, images only for reference.

ASQM16438

Part No ASQM16438
Manufacturer Panasonic
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPST-NO 50MA 16V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Limit Switches
Mfr Panasonic Electric Works
Series ASQM1
Package Bulk
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 50mA (DC)
Voltage Rating - DC 16 V
Actuator Type Lever, Simulated Roller
Mounting Type Chassis Mount
Termination Style Solder Lug
Ingress Protection IP67 - Dust Tight, Waterproof
Features -
Operating Force 153gf
Release Force -
Operating Position 0.423" (10.75mm)
Pretravel -
Differential Travel -
Overtravel 0.085" (2.16mm)
Temperature Range - Operating -40°C ~ 85°C
Electrical Life 150,000 Cycles
Mechanical Life -
Base Product Number ASQM16
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1376170-ASQM16438
Ultra Librarian 3D Model Ultra Librarian ASQM16438 CAD Model

Description

The 1376170-ASQM16438 is a limit switch from Panasonic Electric Works.

  • Series: ASQM1
  • Circuit: SPST-NO
  • Voltage Rating: 16 VDC
  • Current Rating: 50mA
  • Mounting: Chassis Mount
  • IP Rating: IP67
  • Actuator: Lever with Simulated Roller
  • Mechanical Life: 150,000 cycles
  • Operating Force: 153gf
  • Termination Style: Solder Lug
