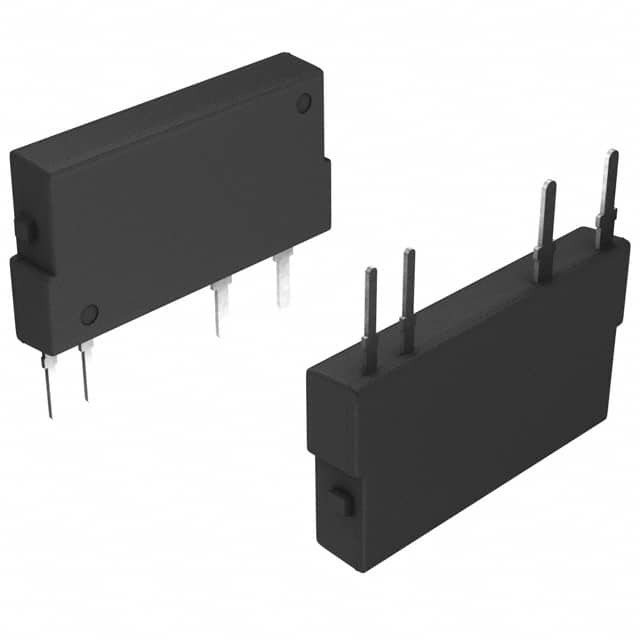

Part No AQZ105D
Manufacturer Panasonic
Catalog Solid State Relays
Description SSR RELAY SPST-NO 2.3A 0-100V / Solid State SPST-NO (1 Form A) 4-SIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Panasonic
Series PhotoMOS™ AQZ
Package Tube
Product Status Active
Mounting Type Through Hole
Circuit SPST-NO (1 Form A)
Output Type DC
Voltage - Input 1.4VDC
Voltage - Load 0 V ~ 100 V
Load Current 2.3 A
On-State Resistance (Max) 170 mOhms
Termination Style PC Pin
Package / Case 4-SIP
Supplier Device Package 4-SIL
Base Product Number AQZ105
Standard Package 25 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.49.0055
Win Source Part Number 911677-AQZ105D
Ultra Librarian 3D Model Ultra Librarian AQZ105D CAD Model

Description

The AQZ105D is a solid-state relay from Panasonic's PhotoMOS™ AQZ series.

  • Circuit Configuration: SPST-NO (1 Form A)
  • Voltage Input: 1.4VDC
  • Output Type: DC
  • On-State Resistance: 170 mOhms
  • Load Current: 2.3 A
  • Voltage Load: 0 V to 100 V
  • Mounting: through-hole
  • Packaging: tube
  • Status: active
  • Manufacturer: Panasonic
