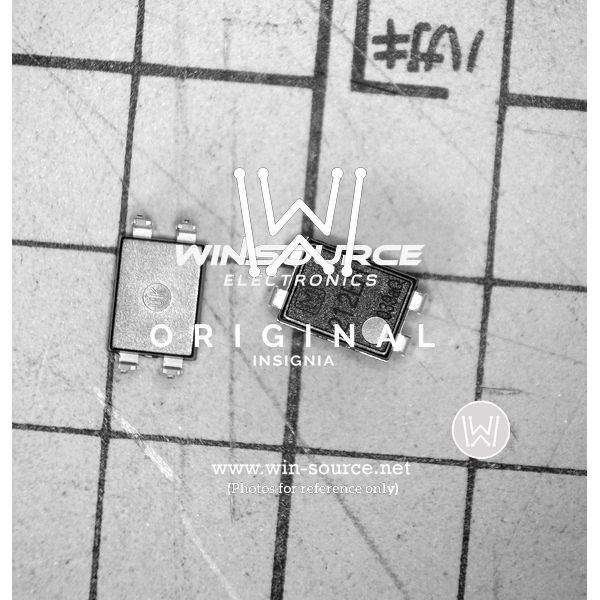

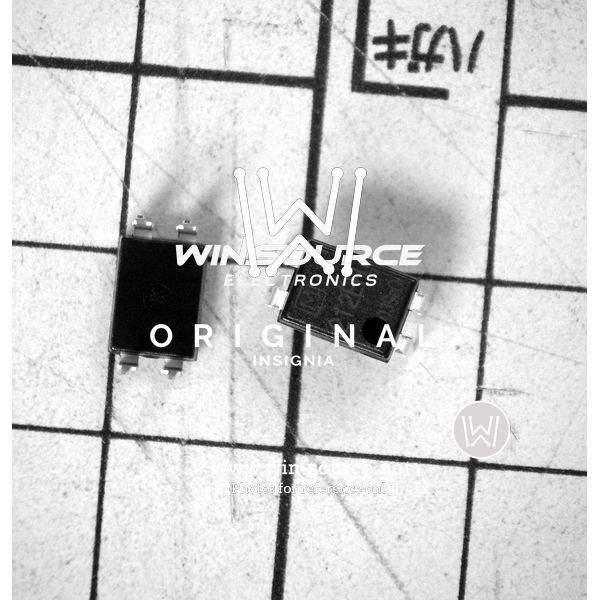

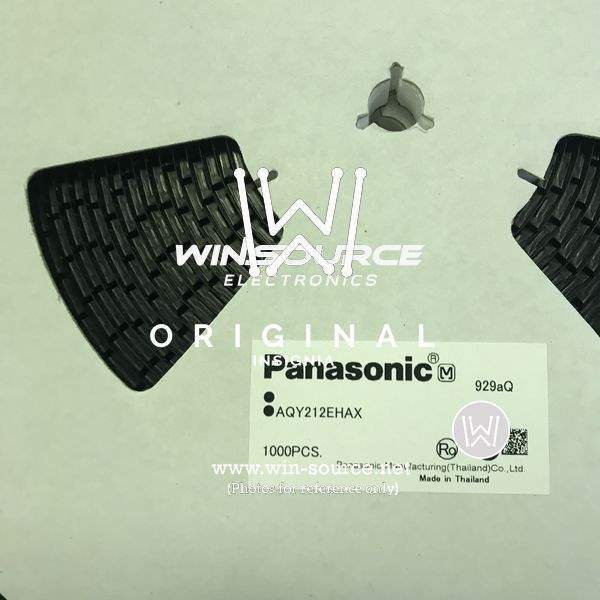

AQY212EHAX Panasonic AQY212EHAX Real Image AQY212EHAX label picture AQY212EHAX real image15139 AQY212EHAX real image15140
Same model may have multiple batches, images only for reference.
AQY212EHAX Panasonic AQY212EHAX Real Image AQY212EHAX label picture AQY212EHAX real image15139 AQY212EHAX real image15140
AQY212EHAX Panasonic AQY212EHAX Real Image AQY212EHAX label picture AQY212EHAX real image15139 AQY212EHAX real image15140
Same model may have multiple batches, images only for reference.

AQY212EHAX

Part No AQY212EHAX
Manufacturer Panasonic
Catalog Solid State Relays
Description Solid State Relay 50mA 1.5V DC-IN 0.55A 60V AC/DC-OUT 4-Pin DIP SMD T/R / RELAY OPTO SPST 550MA 4 SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Max On Resistance 2.5 Ohm
Load Current 550mA
Voltage - Input 1.14VDC
Voltage - Load 0 to 60 V
Mounting SMD (SMT)
Termination Style Gull Wing
Case / Package 4-SMD
Relay Type Relay
Win Source Part Number 1018326-AQY212EHAX
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Quantity per package 1k pcs
Family Name AQY212EHA
Introduction Date May 01, 2006
ECCN EAR99
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian AQY212EHAX CAD Model

Description

The Panasonic Electric Works AQY212EHAX is a gull wing packaged relay with a 4-SMD package.

  • Package: Gull Wing, 4-SMD
  • Load Current: 550mA
  • Voltage Range: 0 to 60V
  • Max On Resistance: 2.5 Ohm
  • Application: Relay
  • Popularity: High
  • Estimated EOL Date: 2031
