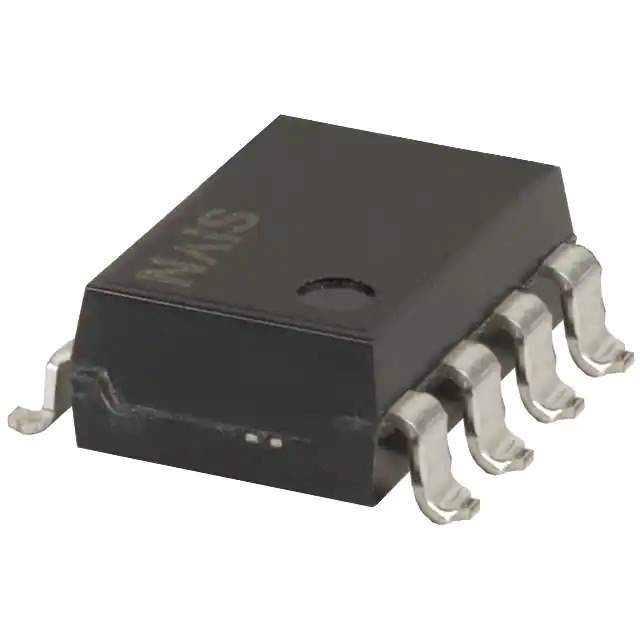

AQW224NAZ Real Image
Same model may have multiple batches, images only for reference.

AQW224NAZ

Part No AQW224NAZ
Manufacturer Panasonic
Catalog Solid State Relays
Description SSR RELAY SPST-NO 40MA 0-400V / Solid State SPST-NO (1 Form A) x 2 8-SMD (0.300", 7.62mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Panasonic
Series PhotoMOS™ AQW
Package Tape & Reel
Product Status Active
Mounting Type Surface Mount
Circuit SPST-NO (1 Form A) x 2
Output Type AC, DC (RF)
Voltage - Input 1.14VDC
Voltage - Load 0 V ~ 400 V
Load Current 40 mA
On-State Resistance (Max) 100 Ohms
Termination Style Gull Wing
Package / Case 8-SMD (0.300", 7.62mm)
Supplier Device Package 8-SMD
Base Product Number AQW224
Standard Package 1,000 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.49.0055
Win Source Part Number 861737-AQW224NAZ
Ultra Librarian 3D Model Ultra Librarian AQW224NAZ CAD Model

Description

The 861737-AQW224NAZ is a solid-state relay from Panasonic's PhotoMOS™ AQW series.

  • On-State Resistance: 100 Ohms
  • Load Current: 40 mA
  • Voltage Input: 1.14VDC
  • Switching: AC and DC (RF) loads up to 400 V
  • Package: 8-SMD
  • Terminals: Gull-wing
  • Mounting: Surface mount
  • Standard Package: 1,000 pcs
