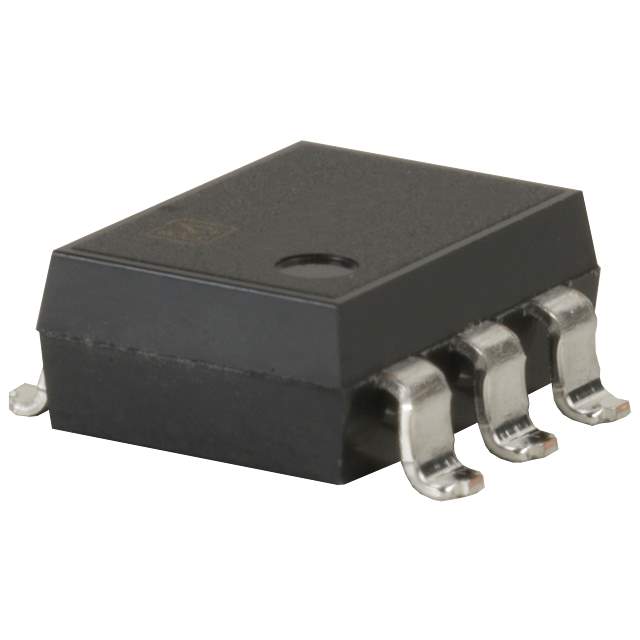

AQV217AZ Real Image
Same model may have multiple batches, images only for reference.

AQV217AZ

Part No AQV217AZ
Manufacturer Panasonic
Catalog Solid State Relays
Description SSR RELAY DPST-NO 180MA 0-200V / Solid State DPST-NO (2 Form A) 6-SMD (0.300", 7.62mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Solid State Relays
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Mounting Surface Mount
Circuit DPST-NO (2 Form A)
Output Type AC, DC
Voltage - Input 1.14VDC
Voltage - Load 0 V ~ 200 V
Load Current 180 mA
On-State Resistance (Max) 15 Ohms
Termination Style Gull Wing
Case / Package 6-SMD (0.300", 7.62mm)
Supplier Device Package 6-SMD
Base Product Number AQV217
RoHS Status RoHS Compliant
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0030
Other Part Number AQV217AZ-ND,255-5855-1,255-5855-2,255-5855-6
Standard Package 1,000
Win Source Part Number 1323812-AQV217AZ
Ultra Librarian 3D Model Ultra Librarian AQV217AZ CAD Model

Description

The AQV217AZ is a DPST-NO (2 Form A) solid state relay manufactured by Panasonic Electric Works.

  • Voltage Input: 1.14VDC
  • Output Type: AC and DC
  • Load Current: 180 mA
  • Voltage Load: 0 V to 200 V
  • On-State Resistance: 15 Ohms
  • Termination Style: Gull Wing
  • Package: 6-SMD
  • ROHS: Compliant
  • Ideal for: Use in relays and solid state relays applications
