Same model may have multiple batches, images only for reference.

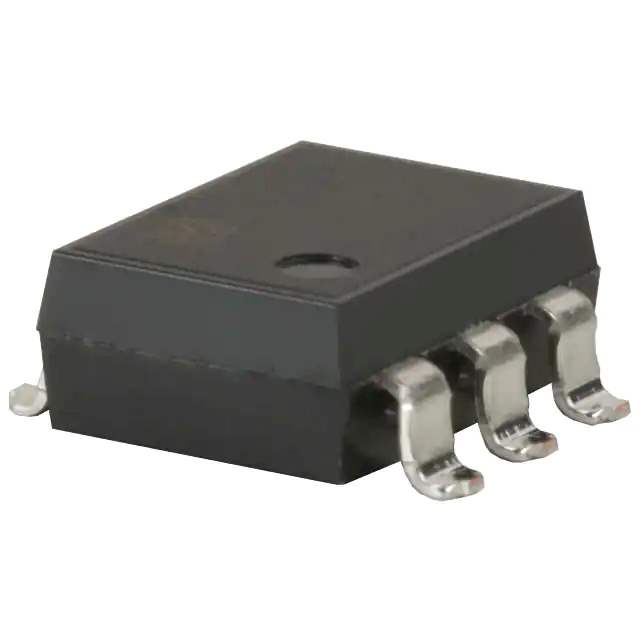

AQV216HAX Real Image
Same model may have multiple batches, images only for reference.

AQV216HAX

Part No AQV216HAX
Manufacturer Panasonic
Catalog Solid State Relays
Description SSR RELAY SPST-NO 50MA 0-600V / Solid State SPST-NO (1 Form A) 6-SMD (0.300", 7.62mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Panasonic
Series PhotoMOS™ AQV
Package Tube
Product Status Active
Mounting Type Surface Mount
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Voltage - Input 1.14VDC
Voltage - Load 0 V ~ 600 V
Load Current 50 mA
On-State Resistance (Max) 120 Ohms
Termination Style Gull Wing
Package / Case 6-SMD (0.300", 7.62mm)
Supplier Device Package 6-SMD
Base Product Number AQV216
Standard Package 50 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 861713-AQV216HAX
Ultra Librarian 3D Model Ultra Librarian AQV216HAX CAD Model

Description

The Panasonic 861713-AQV216HAX is a solid-state relay from the PhotoMOS™ AQV series.

  • Termination Style: Gull-wing
  • Package: Tube
  • Voltage Input: 1.14VDC
  • Output Types: AC and DC
  • Circuit Configuration: SPST-NO
  • On-State Resistance: 120 Ohms
  • Load Current: 50 mA
  • Voltage Load Range: 0 V to 600 V
  • Mounting: Surface mount
  • Package: 6-SMD package
