Same model may have multiple batches, images only for reference.

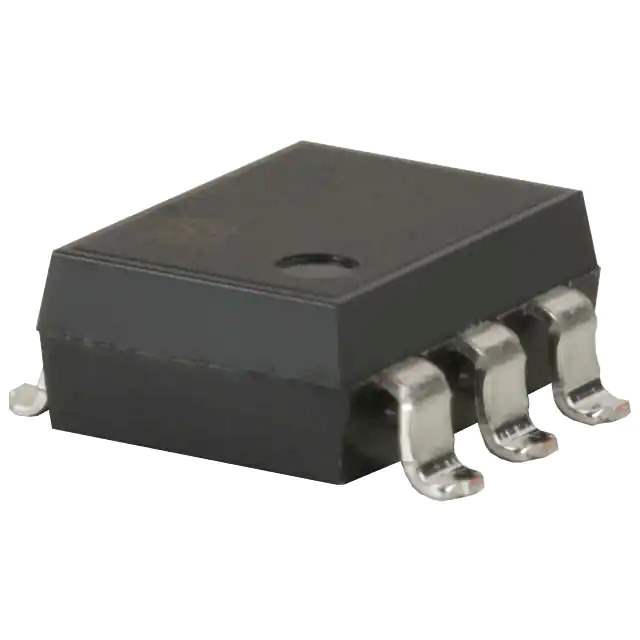

AQV215AX Real Image
Same model may have multiple batches, images only for reference.

AQV215AX

Part No AQV215AX
Manufacturer Panasonic
Catalog Solid State Relays
Description SSR RELAY SPST-NO 320MA 0-100V / Solid State SPST-NO (1 Form A) 6-SMD (0.300", 7.62mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Panasonic
Series PhotoMOS™ AQV
Package Tape & Reel
Product Status Active
Mounting Type Surface Mount
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Voltage - Input 1.14VDC
Voltage - Load 0 V ~ 100 V
Load Current 320 mA
On-State Resistance (Max) 4 Ohms
Termination Style Gull Wing
Package / Case 6-SMD (0.300", 7.62mm)
Supplier Device Package 6-SMD
Base Product Number AQV215
Standard Package 1,000 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 564347-AQV215AX
Ultra Librarian 3D Model Ultra Librarian AQV215AX CAD Model

Description

The Panasonic 564347-AQV215AX is a solid state relay from the PhotoMOS AQV series. It has a gull wing termination style and comes in a tape and reel package.

  • Series: PhotoMOS AQV
  • Termination Style: Gull Wing
  • Package: Tape and Reel
  • Voltage Input: 1.14VDC
  • Output Type: AC and DC
  • Circuit: SPST-NO (1 Form A)
  • Maximum On-State Resistance: 4 Ohms
  • Load Current: 320 mA
  • Load Voltage: 0 V to 100 V
  • Mounting Type: Surface Mount
  • Package: 6-SMD
  • Status: Active
