Same model may have multiple batches, images only for reference.

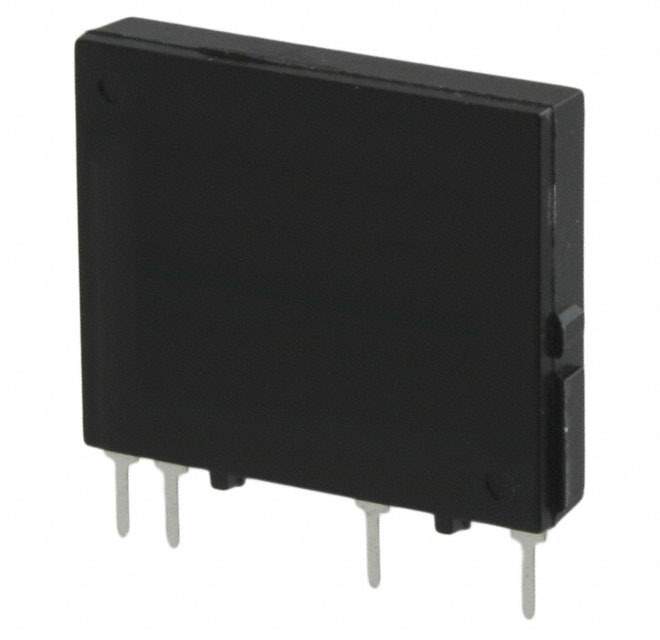

AQG22205 Real Image
Same model may have multiple batches, images only for reference.

AQG22205

Part No AQG22205
Manufacturer Panasonic
Catalog Solid State Relays
Description SSR 2A 264VAC 5VDC-INPUT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Bulk
Status Active
Circuit SPST-NO (1 Form A)
Output Type AC
Load Current 2A
Voltage - Input 4 to 6VDC
Voltage - Load 75 to 264 V
Mounting Through Hole
Termination Style PC Pin
Case / Package 4-SIP
Relay Type Relay
Win Source Part Number 199272-AQG22205
Popularity Medium
Supply and Demand Status Limited
Quantity per package 20
Ultra Librarian 3D Model Ultra Librarian AQG22205 CAD Model

Description

AQG22205 Relay

Engineered for robust industrial environments, the AQG22205 relay is perfect for enhancing the efficiency and reliability of various systems.

  • Applications:
    • Heavy-duty industrial equipment
    • Power distribution units
    • Renewable energy systems
    • Automotive electronics
  • Features and Benefits:
    • High load capacity for demanding applications
    • Durable construction for extended lifecycle
    • Quick activation and response times
    • Resistant to shock and vibration
  • Additional Details: The AQG22205 relay is designed to function reliably in challenging environments, making it ideal for industrial applications.
