Same model may have multiple batches, images only for reference.

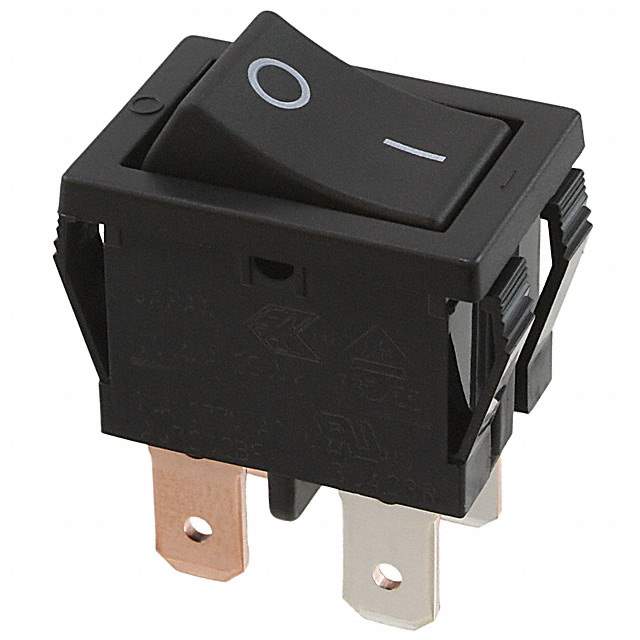

AJ7202BF Real Image
Same model may have multiple batches, images only for reference.

AJ7202BF

Part No AJ7202BF
Manufacturer Panasonic
Catalog Rocker Switches
Description SWITCH ROCKER DPST 10A 250V / Rocker Switch DPST 10A (AC) 250 V Panel Mount, Snap-In
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Rocker Switches
Mfr Panasonic Electric Works
Series AJ7
Package Bulk
Mounting Type Panel Mount, Snap-In
Circuit DPST
Switch Function On-Off
Current Rating (Amps) 10A (AC)
Voltage Rating - AC 250 V
Actuator Type Concave (Curved)
Color - Actuator/Cap Black
Actuator Marking O -
Termination Style Quick Connect - 0.187" (4.7mm)
Panel Cutout Dimensions Rectangular - 19.20mm x 12.90mm
Temperature Range - Operating -25°C ~ 85°C
Mechanical Life 50,000 Cycles
Electrical Life 10,000 Cycles
Base Product Number AJ7202
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9065
Other Names 255-4182
Standard Package 100
Win Source Part Number 1044279-AJ7202BF
Ultra Librarian 3D Model Ultra Librarian AJ7202BF CAD Model

Description

Panasonic Electric Works AJ7202BF is a DPST rocker switch that comes with a concave (curved) actuator type.

  • Electrical Life: 10,000 Cycles
  • Mechanical Life: 50,000 Cycles
  • Supply and Demand Status: Under Shortage
  • ECCN: EAR99 Compliant
