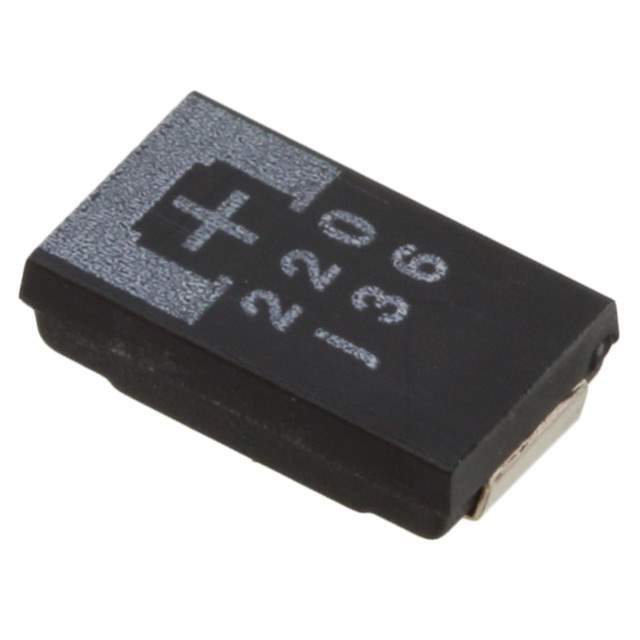

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel
Capacitance 220μF
Tolerance ±20%
Voltage - Rated 6.3V
Type Molded
ESR (Equivalent Series Resistance) 25mOhm at 100kHz
Temperature Range - Operating -55°C ~ 105°C
Lifetime at Temp. 1000 Hrs at 85°C
Mounting Style SMD
Manufacturer Package 2917 (7343 Metric)
Parts Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Maximum) 0.079" (2.00mm)
Manufacturer Size Code D2E
Features General Purpose
Manufacturer Pack Quantity 1
MSL Level 3 (168 Hours)
Win Source Part Number 1129705-6TPE220MAP
Manufacturer Homepage www.panasonic.com/industrial/
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 6TPE220MAP CAD Model

Description

The Panasonic Electronic Components 6TPE220MAP is a molded capacitor that has a capacitance of 220μF and a rated voltage of 6.3V.

  • Capacitance: 220μF
  • Rated Voltage: 6.3V
  • Tolerance: ±20%
  • ESR: 25mOhm @ 100kHz
  • Category: capacitor
  • Manufacturer Part Number: 1129705-6TPE220MAP
  • Applications: general-purpose applications
  • Supply and Demand Status: limited
  • Popularity: medium
  • Height: 0.079" (2.00mm)
  • Manufacturer Size Code: D2E
  • Lifetime: 1000 hours @ 85°C
