Same model may have multiple batches, images only for reference.

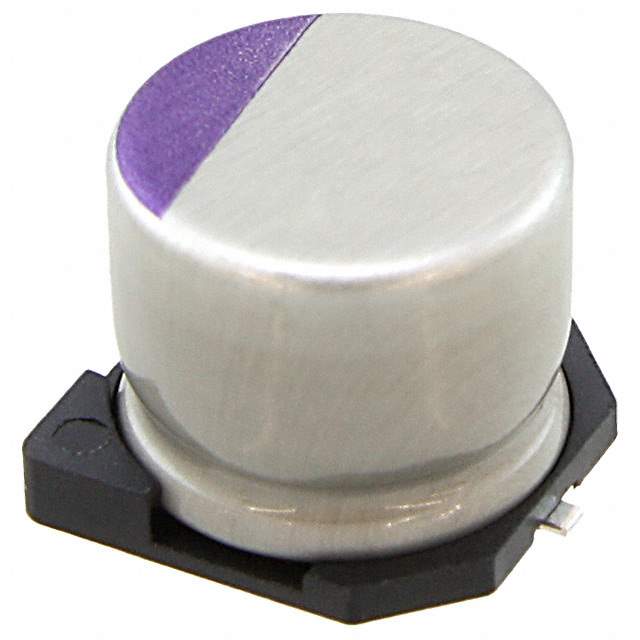

6SVP220MX Real Image
Same model may have multiple batches, images only for reference.

6SVP220MX

Part No 6SVP220MX
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description 4. SPECIFICATIONS FOR EACH SERIES | CAP ALUM POLY 220UF 20% 6.3V SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel
Type Polymer
Capacitance 220μF
Tolerance ±20%
Voltage - Rated 6.3V
ESR (Equivalent Series Resistance) 35mOhm
Lifetime at Temp. 2000 Hrs at 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current at Low Frequency 128mA at 120Hz
Ripple Current at High Frequency 2.56A at 100kHz
Parts Dimension 0.315" Dia (8.00mm)
Height - Seated (Maximum) 0.276" (7.00mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Style SMD
Manufacturer Package Radial, Can - SMD
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1129696-6SVP220MX
Manufacturer Homepage www.ssdc-jp.com/eng/
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 6SVP220MX CAD Model

Description

The Panasonic Electronic Components 1129696-6SVP220MX is a polymer capacitor with a capacitance of 220μF and a voltage rating of 6.3V.

  • Manufacturer: Panasonic Electronic Components
  • Type: Polymer capacitor
  • Capacitance: 220μF
  • Voltage Rating: 6.3V
  • Mounting: Surface mount device
  • Package: Radial, can-shaped
  • ESR: Low ESR of 35mOhm
  • Temperature Range: -55°C to 105°C
  • Lifespan: 2000 hours @ 105°C
  • Popularity: Widely used in electronic circuits and is highly popular among engineers due to its high reliability and performance
