Same model may have multiple batches, images only for reference.

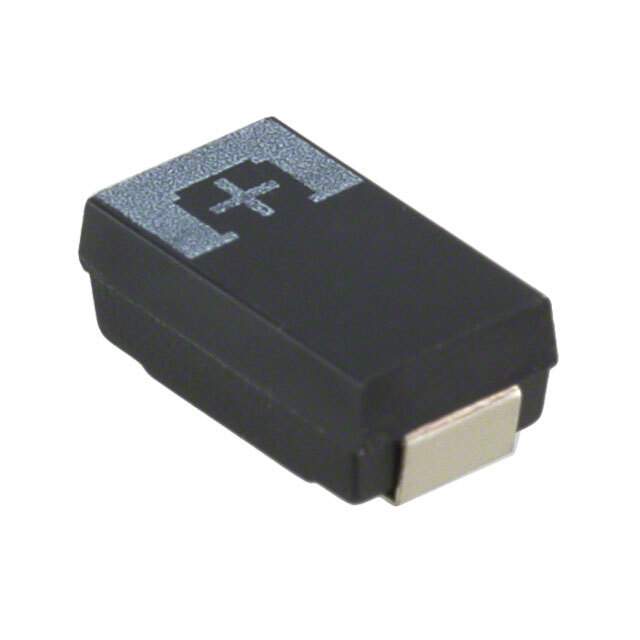

4TPF680MAH Real Image
Same model may have multiple batches, images only for reference.

4TPF680MAH

Part No 4TPF680MAH
Manufacturer Panasonic
Catalog Tantalum - Polymer Capacitors
Description Surface Mount Type | CAP TANT POLY 680UF 4V 2917
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel
Capacitance 680μF
Tolerance ±20%
Voltage - Rated 4V
Type Molded
ESR (Equivalent Series Resistance) 10mOhm at 100kHz
Temperature Range - Operating -55°C ~ 105°C
Lifetime at Temp. 2000 Hrs at 105°C
Mounting Style SMD
Manufacturer Package 2917 (7343 Metric)
Parts Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Maximum) 0.157" (4.00mm)
Manufacturer Size Code D4
Features General Purpose
Manufacturer Pack Quantity 1
MSL Level 3 (168 Hours)
Win Source Part Number 751403-4TPF680MAH
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 4TPF680MAH CAD Model

Description

The Panasonic Electronic Components 751403-4TPF680MAH is a molded capacitor with a capacitance of 680μF and a tolerance of ±20%.

  • Capacitance: 680μF
  • Tolerance: ±20%
  • Voltage Rating: 4V
  • ESR: 10mOhm @ 100kHz
  • Manufacturer Package: 2917 (7343 Metric)
  • Supply and Demand Status: Balanced
  • Manufacturer Pack Quantity: 1
  • MSL Level: 3 (168 Hours)
  • Lifetime @ temp: 2000 Hrs @ 105°C
