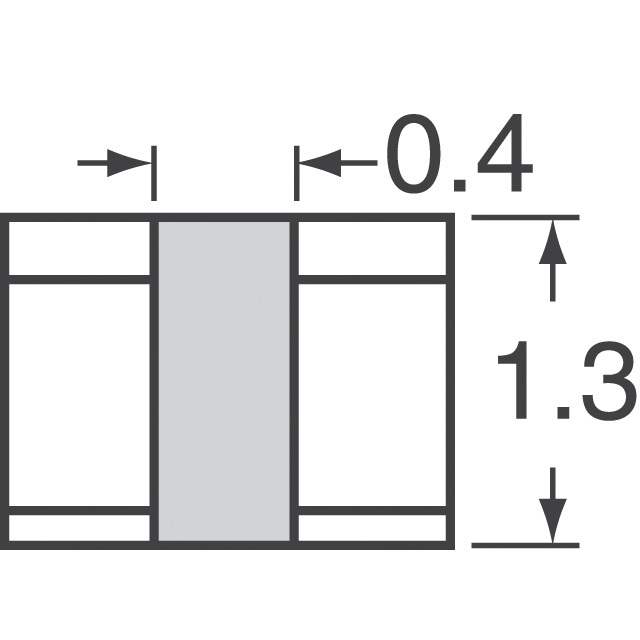

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Filters
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Frequency 5.5GHz Center
Bandwidth 700MHz
Filter Type Band Pass
Ripple 1dB
Insertion Loss 1.5dB
Mounting SMD (SMT)
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height (Max) 0.051" (1.30mm)
Win Source Part Number 113746-ELB-2A002
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ELB-2A002 CAD Model

Description

ELB-2A002 High-Performance Component

The ELB-2A002 is crafted for those seeking high performance and reliability. With its advanced engineering, this component is suitable for high-stakes applications demanding precision.

Features and Benefits:

  • High Precision: Delivers accurate and consistent results.
  • Energy Efficiency: Minimizes power consumption while maximizing output.
  • Reliable Performance: Ensures stability across diverse operating conditions.

Applications/Projects:

  • Medical Devices
  • Telecommunications
  • Data Processing
  • Military Technology

This component is especially beneficial for projects where performance and dependability are non-negotiable.
