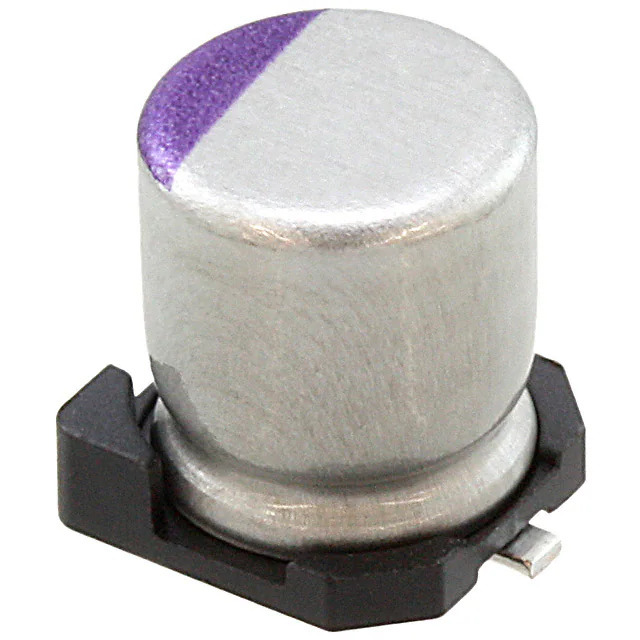

Same model may have multiple batches, images only for reference.

2R5SVPE330MY

Name: 2R5SVPE330MY
Brand: Panasonic
SKU: 1359474
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	2R5SVPE330MY
Manufacturer	Panasonic
Catalog	Aluminum - Polymer Capacitors
Description	CAP ALUM POLY 330UF 20% 2.5V SMD / 330 µF 2.5 V Aluminum - Polymer Capacitors Radial, Can - SMD 10mOhm 2000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum - Polymer Capacitors
Mfr	Panasonic Electronic Components
Series	OS-CON™, SVPE
Package	Tape & Reel
Product Status	Active
Type	Polymer
Capacitance	330 µF
Tolerance	±20%
Voltage - Rated	2.5 V
ESR (Equivalent Series Resistance)	10mOhm
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	193 mA @ 120 Hz
Ripple Current @ High Frequency	3.86 A @ 100 kHz
Lead Spacing	-
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.236" (6.00mm)
Surface Mount Land Size	0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
Base Product Number	2R5SVPE
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1359474-2R5SVPE330MY
Ultra Librarian 3D Model	Ultra Librarian 2R5SVPE330MY CAD Model

Description

The 1359474-2R5SVPE330MY is an aluminum polymer capacitor manufactured by Panasonic Electronic Components.

Series: OS-CON™, SVPE
Mounting Type: Surface Mount
Capacitance: 330 µF
Voltage Rating: 2.5 V
Tolerance: ±20%
ESR: 10mOhm
Application: General Purpose
Ripple Current: 193 mA @ 120 Hz, 3.86 A @ 100 kHz
Size: 0.197" diameter (5.00mm)
Height: 0.236" (6.00mm)
REACH: Unaffected
ECCN: EAR99
Packaging: Tape & Reel
