Same model may have multiple batches, images only for reference.

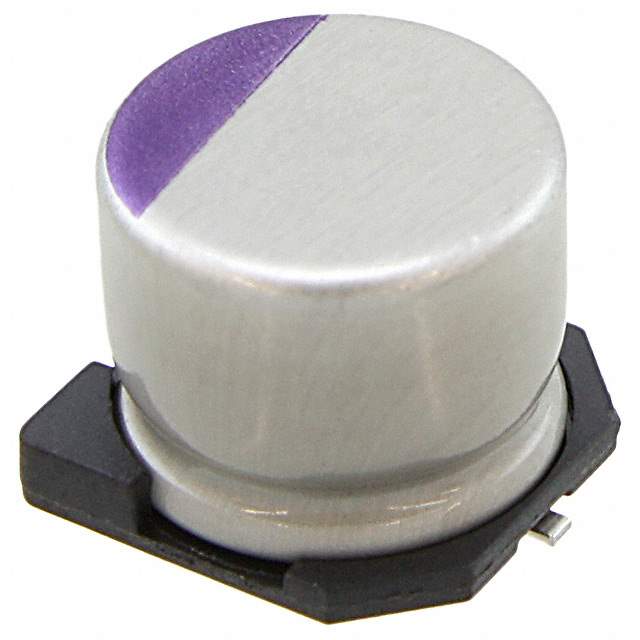

2R5SVPC680M Real Image
Same model may have multiple batches, images only for reference.

2R5SVPC680M

Part No 2R5SVPC680M
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 68UF 20% 2.5V SMD
Datasheet
2R5SVPC680M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Type Polymer
Capacitance 68μF
Tolerance ±20%
Voltage Rating 2.5V
ESR 20 mOhm
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C to 105°C
Ripple Current - Low Frequency 168.5mA @ 120Hz
Ripple Current - High Frequency 3.37A @ 100kHz
Height - Seated (Max) 0.276" (7.00mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting SMD (SMT)
Dimension Radial, Can - SMD
Win Source Part Number 1004124-2R5SVPC680M
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian 2R5SVPC680M CAD Model

Description

The Panasonic Electronic Components 1004124-2R5SVPC680M is a polymer capacitor designed for surface mount technology (SMT) mounting.

  • Voltage Rating: 2.5V
  • Capacitance: 68μF
  • Tolerance: ±20%
  • ESR: 20 mOhm
  • Ripple Current: 168.5mA @ 120Hz and 3.37A @ 100kHz
  • Lifetime: 2000 Hrs @ 105°C
  • Dimension: Radial, can - SMD
  • Surface Mount Land Size: 0.327" L x 0.327" W (8.30mm x 8.30mm)
  • Component Status: Active
  • Popularity: Medium
  • Supply and Demand Status: Balanced
