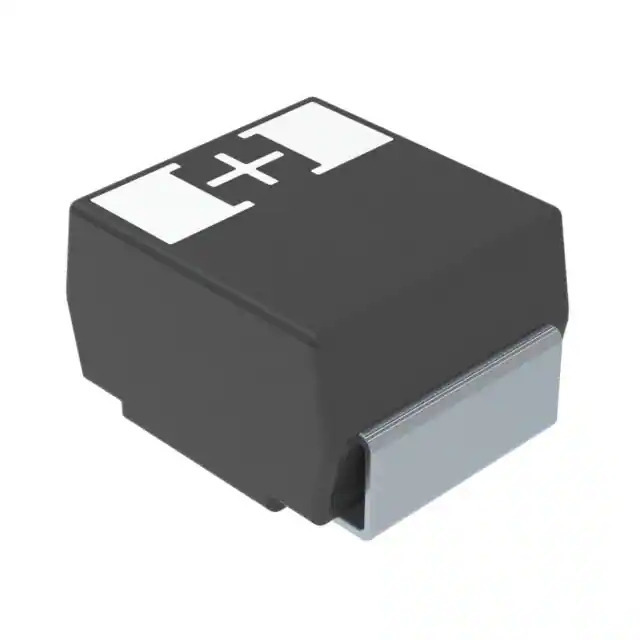

20TDC22MYFB Panasonic
Same model may have multiple batches, images only for reference.

20TDC22MYFB

Part No 20TDC22MYFB
Manufacturer Panasonic
Catalog Tantalum - Polymer Capacitors
Description CAP TANT POLY 22UF 20V 1411 / 22 µF Molded Tantalum Polymer Capacitor 20 V 1411 (3528 Metric) 90mOhm @ 100kHz
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Tantalum - Polymer Capacitors
Mfr Panasonic Electronic Components
Series POSCAP™ TDC
Package Tape & Reel
Product Status Active
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 20 V
Type Molded
ESR (Equivalent Series Resistance) 90mOhm @ 100kHz
Temperature Range - Operating -55°C ~ 125°C
Lifetime @ Temp. 1000 Hrs @ 125°C
Mounting Type Surface Mount
Package / Case 1411 (3528 Metric)
Size / Dimension 0.138" L x 0.110" W (3.50mm x 2.80mm)
Height - Seated (Max) 0.079" (2.00mm)
Lead Spacing -
Manufacturer Size Code B2
Ratings -
Features General Purpose
Base Product Number 20TDC
ECCN EAR99
HTSUS 8532.21.0050
Win Source Part Number 1359837-20TDC22MYFB
Ultra Librarian 3D Model Ultra Librarian 20TDC22MYFB CAD Model

Description

The 1359837-20TDC22MYFB is a tantalum polymer capacitor manufactured by Panasonic Electronic Components.

  • Category: Tantalum Capacitor
  • Package: 1411 (3528 Metric)
  • Capacitance: 22µF
  • Voltage Rating: 20V
  • ESR: 90mOhm @ 100kHz
  • Size: 0.138" L x 0.110" W (3.50mm x 2.80mm)
  • Height: 0.079" (2.00mm)
  • Status: Active
  • Lifetime: 1000 hours @ 125°C
  • Application: General-Purpose
