Same model may have multiple batches, images only for reference.

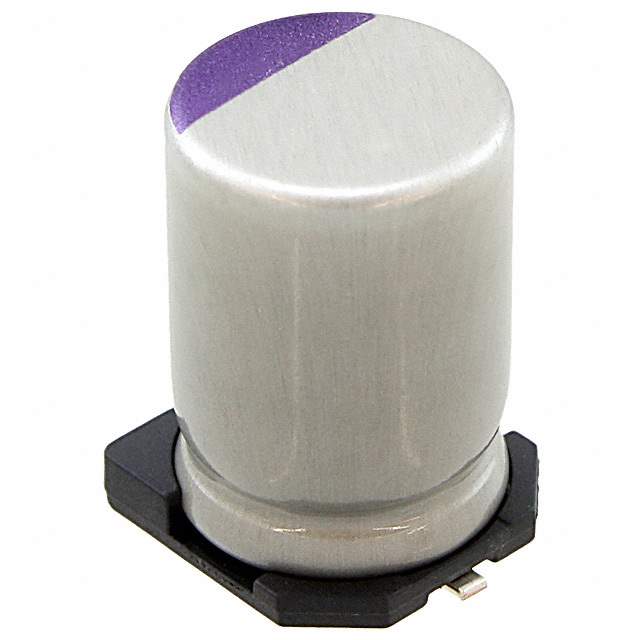

10SVP330M Real Image
Same model may have multiple batches, images only for reference.

10SVP330M

Part No 10SVP330M
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description 4. SPECIFICATIONS FOR EACH SERIES | CAP ALUM POLY 330UF 20% 10V SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel
Type Polymer
Capacitance 330μF
Tolerance ±20%
Voltage - Rated 10V
ESR (Equivalent Series Resistance) 17mOhm
Lifetime at Temp. 2000 Hrs at 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current at Low Frequency 197.5mA at 120Hz
Ripple Current at High Frequency 3.95A at 100kHz
Parts Dimension 0.315" Dia (8.00mm)
Height - Seated (Maximum) 0.472" (12.00mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Style SMD
Manufacturer Package Radial, Can - SMD
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1121084-10SVP330M
Manufacturer Homepage www.ssdc-jp.com/eng/
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 10SVP330M CAD Model

Description

The 10SVP330M is a general-purpose polymer capacitor designed for surface mounting and is manufactured by Panasonic Electronic Components.

  • Capacitance: 330μF
  • Voltage Rating: 10V
  • Tolerance: ±20%
  • ESR: 17mOhm
  • Ripple Current (Low Frequency): 197.5mA
  • Ripple Current (High Frequency): 3.95A
  • Surface Mount Land Size: 0.327" L x 0.327" W (8.30mm x 8.30mm)
  • Package: Radial, Can - SMD
  • Operating Temperature: -55°C ~ 105°C
  • Lifetime: 2000 Hrs @ 105°C
