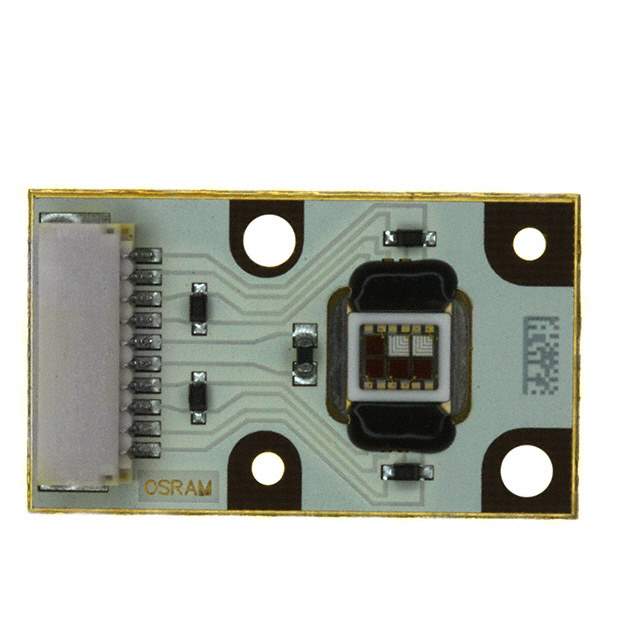

LE AB H3AB-JBLA-1+EWFW-23 Real Image
Same model may have multiple batches, images only for reference.

LE AB H3AB-JBLA-1+EWFW-23

Part No LE AB H3AB-JBLA-1+EWFW-23
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description LED OSTAR PROJ 6CHIP AMB/BLU SMD
Datasheet
LE AB H3AB-JBLA-1+EWFW-23 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer OSRAM Opto Semiconductors Inc.
Series Ostar
Packaging Tray
Part Status Obsolete(EOL)
Type LED Module
Color Amber, Blue
Wavelength 617nm Amber, 464nm Blue
Configuration Rectangle
Flux @ Current/Temperature - Test 285 lm (Typ) Amber, 35 lm (Typ) Blue
Current - Test 1A Amber, 1A Blue
Temperature - Test 25°C
Voltage - Forward (Vf) (Typ) 2.8V Amber, 4V Blue
Lumens/Watt @ Current - Test 102 lm/W Amber, 9 lm/W Blue
Current - Max 1A Amber, 1A Blue
Viewing Angle 120°
Features With Connector
Dimension 25.50mm L x 15.00mm W
Height 4.56mm
Light Emitting Surface (LES) 3.13mm L x 2.03mm W
Lens Type Flat
Win Source Part Number 770032-LE AB H3AB-JBLA-1+EWFW-23
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LE AB H3AB-JBLA-1+EWFW-23 CAD Model

Description

The OSRAM Opto Semiconductors Inc. LED Module is a rectangular-shaped electronic component that comes with connectors and is packed in a tray.

  • Color: Amber, Blue
  • Viewing Angle: 120 degrees
  • Maximum Current: 1A (Amber & Blue)
  • Forward Voltage: 2.8V (Amber), 4V (Blue)
  • Wavelength: 617nm (Amber), 464nm (Blue)
  • Light Emitting Surface: 3.13mm L x 2.03mm W
  • Module Dimension: 25.50mm L x 15.00mm W
  • Lumens/Watt: 102 lm/W (Amber), 9 lm/W (Blue)
  • Application: Optoelectronics
  • Status: Obsolete (EOL)
  • Supply and Demand Status: Limited
