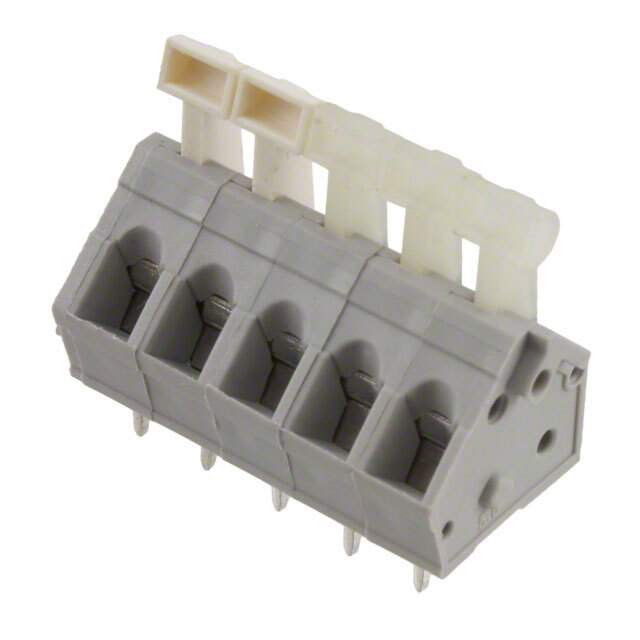

OSTHT050080 Real Image
Same model may have multiple batches, images only for reference.

OSTHT050080

Part No OSTHT050080
Manufacturer On Shore Technology Inc.
Catalog Terminal Blocks
Description TERM BLOCK 5POS 5MM PCB / 5 Position Wire to Board Terminal Block Angled 0.197" (5.00mm) Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks>Wire to Board
Manufacturer On Shore Technology Inc.
Packaging Bulk
Number of Levels 1
Positions Per Level 5
Pitch 0.197" (5.00mm)
Mating Orientation Angled
Current 15 A
Voltage 300 V
Wire Gauge 12-28 AWG
Mounting Through Hole
Wire Termination Screwless - Leg Spring, Push-In Spring
Features Interlocking (Side), Lever Actuated
Color Gray
Temperature Range - Operating -30°C ~ 105°C
Housing Material Thermoplastic
Contact Material - Plating Brass
Clamp Material - Plating Steel, Stainless
Base Product Number OSTHT05
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number ED2725
Standard Package 1
Win Source Part Number 1332176-OSTHT050080
Ultra Librarian 3D Model Ultra Librarian OSTHT050080 CAD Model

Description

The On Shore Technology Inc. 1332176-OSTHT050080 is a 5-position, 5.00mm pitch, wire-to-board terminal block.

  • Positions: 5
  • Pitch: 5.00mm
  • Type: Wire-to-Board Terminal Block
  • Features: Interlocking Sides, Lever Actuated
  • Wire Gauge: 12-28 AWG
  • Current: 15 A
  • Material: Thermoplastic
  • Voltage: 300 V
  • Packaging: Bulk
  • Quantity: 1 unit
  • Mounting: Through-Hole
  • Contact Material: Brass
  • Clamp Material: Steel and Stainless
  • Compliance: ROHS3 Compliant
  • REACH: Unaffected
