Same model may have multiple batches, images only for reference.

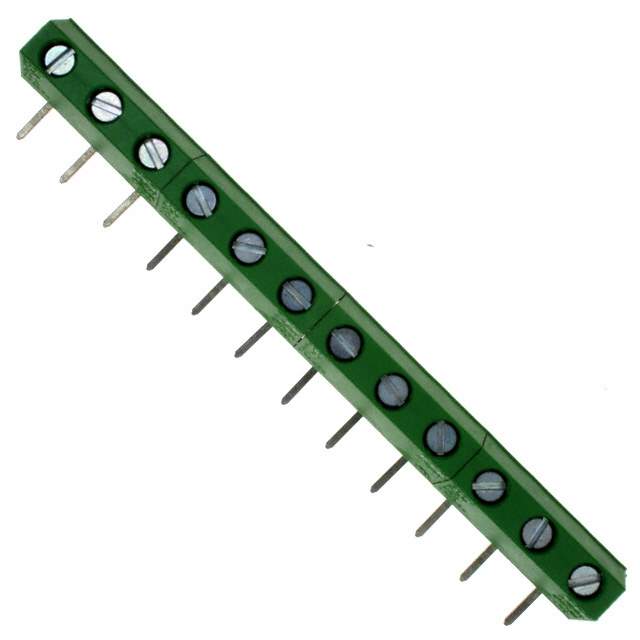

ED360/12 Real Image
Same model may have multiple batches, images only for reference.

ED360/12

Part No ED360/12
Manufacturer On Shore Technology Inc.
Catalog Terminal Blocks
Description TERMINAL BLOCK 7.50MM 12POS PCB
Datasheet
ED360/12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer On Shore Technology Inc.
Packaging Bulk
Status Active
Number of Levels 1
Positions Per Level 12
Pitch 0.295" (7.50mm)
Mating Orientation Vertical with Board
Current 16A
Voltage 300V
Wire Gauge 12-22 AWG
Mounting Through Hole
Wire Termination Screw - Rising Cage Clamp
Color Green
Temperature Range - Operating -30°C to 105°C
Housing Material Polyamide (PA), Nylon
Contact Material - Plating Brass
Clamp Material - Plating Copper
Screw Thread M3
Win Source Part Number 1032115-ED360/12
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ED360/12 CAD Model

Description

The On Shore Technology Inc. 1032115-ED360/12 is a green colored, through-hole mounting connector that has 12 positions per level and is designed for use with wire gauges ranging from 12-22 AWG.

  • Housing Material: Polyamide (PA) nylon
  • Voltage Rating: 300V
  • Current Rating: 16A
  • Mating Orientation: Vertical with the board
  • Wire Termination: Screw - rising cage clamp
  • Contact Material: Brass
  • Clamp Material: Copper
  • Screw Thread: M3
  • Temperature Range: -30°C to 105°C
