ON Semiconductor NCP380LMU10AATBG Load Switch

The ON Semiconductor NCP380LMU10AATBG is a high-performance, current-limited load switch designed to provide a safe and efficient means of controlling power distribution in electronic systems. This compact, integrated circuit is ideal for a wide range of applications, including portable devices, computing, and telecommunications, where precise power management is essential.

The NCP380LMU10AATBG boasts an adjustable current limit which allows designers to tailor the current protection to their specific needs, ensuring devices are safeguarded against overcurrent conditions. This feature is particularly beneficial in prolonging the life of batteries in portable applications by preventing excessive current draw during fault conditions.

With an operating voltage range of 2.7V to 5.5V, the NCP380LMU10AATBG is versatile enough to support a variety of low-voltage applications. Its low quiescent current contributes to the overall energy efficiency of the system, making it an excellent choice for battery-powered devices where power conservation is critical.

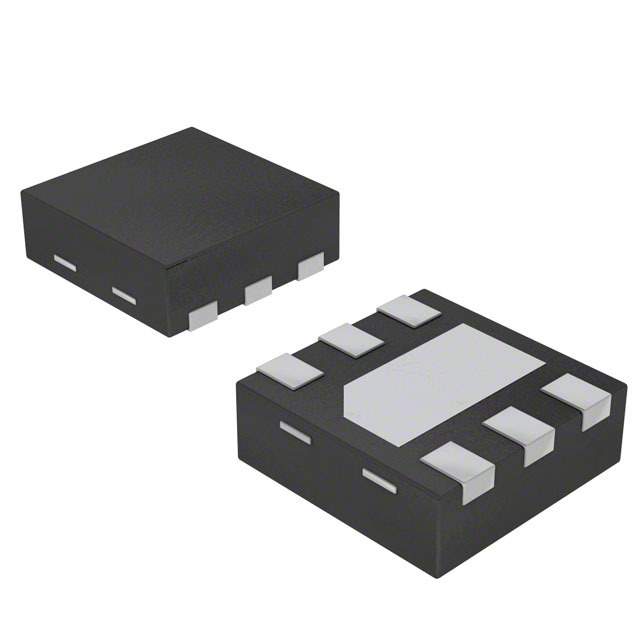

The device is housed in a space-saving 6-pin μDFN package, which is not only compact but also offers excellent thermal performance. This small footprint allows for high-density board layouts, which is essential for modern, miniaturized electronic products.

Additional features of the NCP380LMU10AATBG include under-voltage lockout (UVLO), which prevents the device from turning on when the input voltage is below a certain threshold, thereby protecting the load and the switch itself. The fast response time to fault conditions ensures quick reaction to overcurrent events, minimizing the risk of damage to the system components.

The NCP380LMU10AATBG also offers a flag output that provides a fault signal to the host controller when an overcurrent condition is detected. This enables system designers to implement intelligent control and monitoring of the power distribution system, further enhancing the safety and reliability of the overall design.

In summary, the ON Semiconductor NCP380LMU10AATBG is a sophisticated load switch that offers adjustable current limiting, low standby power, and a compact package, making it an excellent choice for a multitude of power management applications where space and power efficiency are paramount.
