The MOC3073M is a robust optoisolator component manufactured by ON Semiconductor, renowned for its high efficiency and reliability in various electronic applications. This device is designed to provide optimal isolation between electrical circuits with a zero-crossing circuitry, making it an excellent choice for interfacing with AC mains applications.

Key Features

• Zero-Crossing Circuit: The MOC3073M features a zero-crossing circuit that minimizes the generation of electrical noise during the AC load's turn-on phase. This is particularly useful for controlling loads such as motors and transformers, as it helps to reduce inrush current and extend the life of the component.
• High Isolation Voltage: With an isolation voltage rating of 7500V peak, this optoisolator provides a high level of electrical isolation between the input and output, offering safety and protection for sensitive electronic circuits.
• Triac Driver Output: The device includes a triac driver output, which is capable of driving a triac with currents up to 15mA. This makes it suitable for directly driving small to medium power triacs for controlling AC loads.
• Wide Operating Temperature Range: The MOC3073M can operate within a temperature range of -40°C to +85°C, ensuring reliable performance across a broad range of environmental conditions.

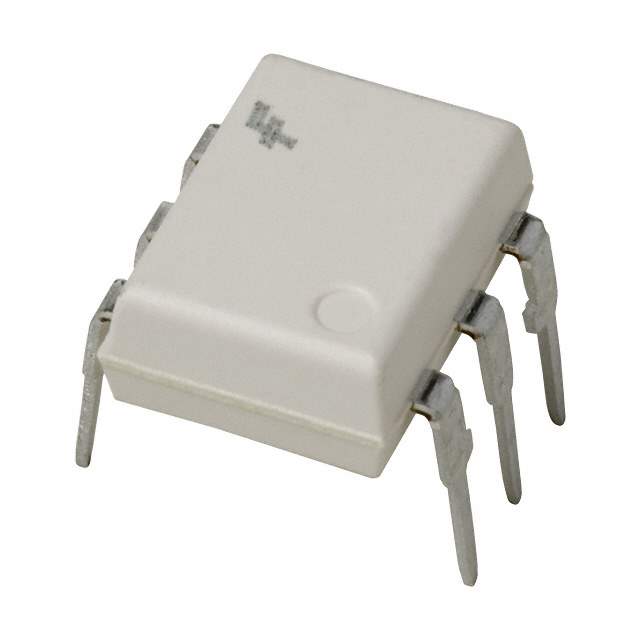

• DIP-6 Package: Housed in a standard DIP-6 package, the MOC3073M is compatible with through-hole PCB mounting, which is ideal for designs where surface mount technology is not preferable.

Applications

The MOC3073M is widely used in applications that require AC power control with a high degree of electrical isolation, such as:

• AC motor control
• Lighting control systems
• Industrial controls
• Home appliances

In summary, the MOC3073M from ON Semiconductor is a versatile and efficient solution for controlling AC power with the added advantage of zero-crossing detection, ensuring smoother operation and enhanced longevity of electronic systems.
