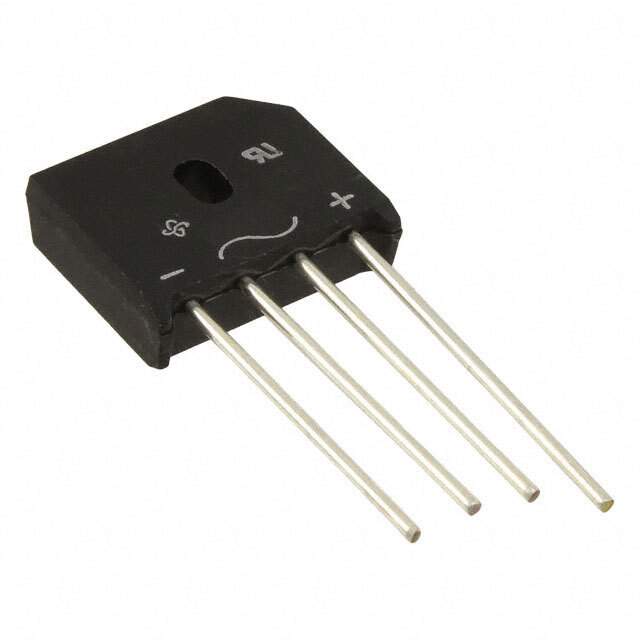

The ON Semiconductor KBU6J is a high-quality bridge rectifier designed for efficient and reliable conversion of alternating current (AC) to direct current (DC). This component is widely used in a variety of electronic applications such as power supplies, adapters, and various other electronic circuits that require rectification.
Key Features
- High Current Rating: The KBU6J can handle a high forward current of up to 6A, making it suitable for applications with moderate to high current requirements.
- Peak Repetitive Reverse Voltage: It has a peak repetitive reverse voltage (Vrrm) of 600V, providing a good margin for applications that experience voltage spikes or surges.
- Surge Overload Rating: It can withstand surge overload ratings, ensuring durability and reliability in harsh electrical environments.
- Isolation Voltage: The device features an isolation voltage of 1500V from case to leads, offering additional safety for the user and protection for the device.
- High Efficiency: With its low forward voltage drop and high efficiency, the KBU6J ensures minimal power loss in the rectification process, which is crucial for energy-sensitive applications.
- Case: The KBU6J comes in a standard KBU package, known for its robustness and ease of mounting on printed circuit boards (PCBs).
Applications
The ON Semiconductor KBU6J bridge rectifier is suitable for a wide range of applications, including:
- Power Management Systems
- AC/DC Converters
- Power Supply Units (PSUs)
- Battery Chargers
- Motor Controllers
- Consumer Electronics
Technical Specifications
Parameter
Value
Forward Current (If)
6A
Repetitive Reverse Voltage (Vrrm)
600V
Isolation Voltage
1500V
Operating Temperature Range
-55°C to +150°C
In summary, the ON Semiconductor KBU6J is a dependable and efficient solution for AC to DC conversion, offering high current capability, a high reverse voltage rating, and a robust package for easy PCB integration.
