The ON Semiconductor FOD8342TR2 is a high-performance, optically isolated gate driver designed to meet the stringent requirements of modern power systems. This device serves as a critical interface between control systems and power switches such as IGBTs and MOSFETs, providing electrical isolation and driving capabilities for efficient and safe operation.
Key Features
- High Isolation Voltage: The FOD8342TR2 offers an impressive isolation voltage of 3750Vrms for 1 minute, ensuring that the control circuits are well protected from high voltage transients in the power stage.
- High-Speed Operation: With a propagation delay typically under 500ns, this device is capable of high-speed switching, making it suitable for high-frequency power converters and inverters.
- Integrated Fail-Safe IGBT Protection: The device features an Under Voltage Lock-Out (UVLO) with hysteresis, providing protection against insufficient gate voltage which can lead to IGBT or MOSFET damage.
- CMOS/TTL Compatible: The input side of the FOD8342TR2 is compatible with CMOS and TTL logic levels, allowing for easy interfacing with a wide range of control circuitries.
- Robust Output Drive: This gate driver is capable of providing 2.5A of peak output current, ensuring strong and reliable gate charging and discharging for efficient switching.
Applications
The FOD8342TR2 is ideal for use in a variety of applications where efficient power management and isolation are critical. Some common applications include:
- Industrial inverters and converters
- Motor drives
- Power supply units
- Renewable energy systems, such as solar inverters and wind turbine power converters
Package and Quality

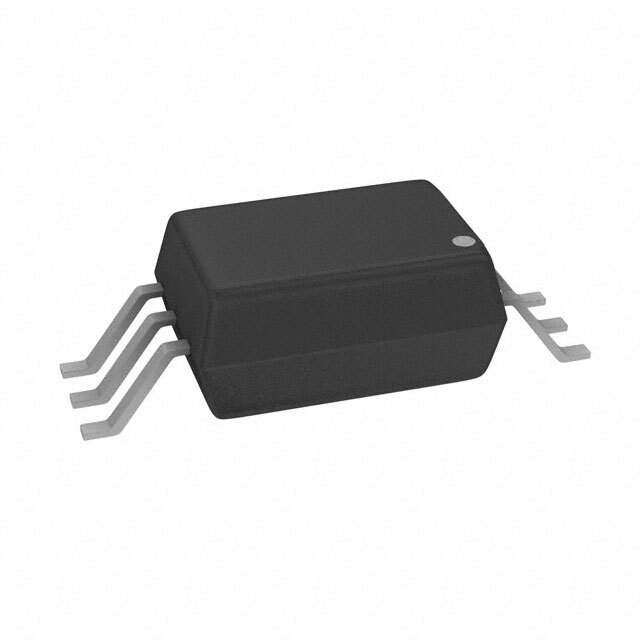

ON Semiconductor's FOD8342TR2 comes in a compact 5-pin SOIC package, which is designed for optimal thermal performance and space-saving on the PCB. The device is also available in tape and reel packaging, facilitating easy integration into automated manufacturing processes. ON Semiconductor is committed to providing high-quality products, and the FOD8342TR2 is no exception, meeting stringent industry standards for performance and reliability.
