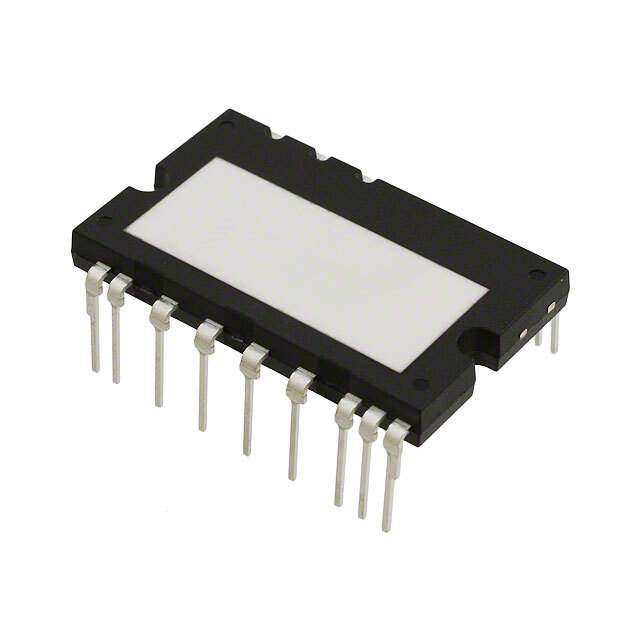

Introducing the FNB41060B2 Smart Power Module from ON Semiconductor

The FNB41060B2 is a cutting-edge Smart Power Module (SPM) designed and manufactured by ON Semiconductor, a leading provider of semiconductor-based solutions. This module is part of the Motion SPM® 45 series and is specifically engineered to drive high-performance applications requiring efficient power management and compact design.

Key Features

• Advanced IGBT Technology: The FNB41060B2 incorporates Insulated Gate Bipolar Transistor (IGBT) technology, ensuring efficient and fast switching performance, which is critical for high-speed motor control applications.
• Integrated Bootstrap Diodes: This module comes with built-in bootstrap diodes for the high-side gate drive, simplifying the circuit design and reducing the external component count.
• Over-Current Protection: The built-in over-current protection feature provides safety and reliability, ensuring the module and the system it powers are safeguarded against unexpected current spikes.
• Under-Voltage Lockout: The FNB41060B2 is equipped with an under-voltage lockout function that prevents the system from operating under insufficient power supply conditions, thus protecting the IGBTs from potential damage.
• Optimized for Thermal Performance: The module is designed with excellent thermal performance in mind, featuring a low thermal resistance package that helps in maintaining a lower operating temperature.

Applications

The FNB41060B2 is ideally suited for a wide range of applications that demand high efficiency and reliability. Its typical applications include:

• AC motor drives
• Washing machines
• Refrigeration compressors
• Fans and pumps
• Other general-purpose inverters

Easy Integration and Robust Design

ON Semiconductor's FNB41060B2 is designed to offer ease of integration into various system designs. Its compact footprint and high level of integration make it an ideal choice for designers looking to reduce the size and complexity of their power control systems. The robust design ensures long-term reliability and performance, even in the most demanding environments.

Whether you are designing a new system or upgrading an existing one, the FNB41060B2 from ON Semiconductor provides the performance, integration, and reliability needed to create efficient, high-performing power management solutions.
