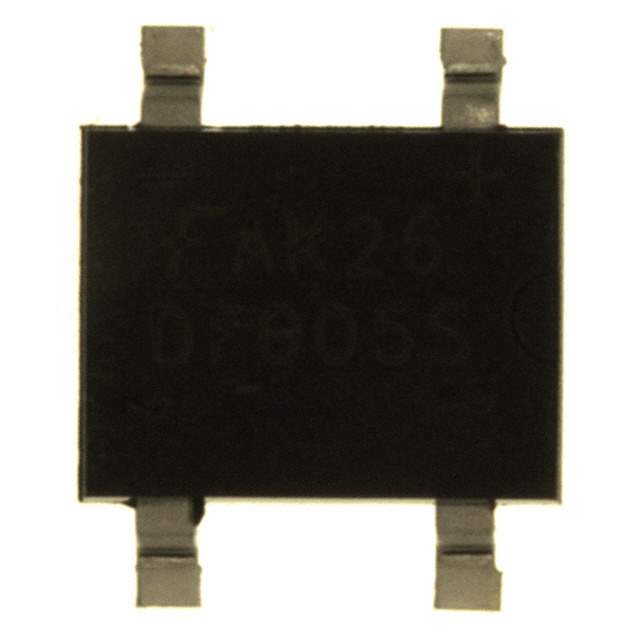

The DF005S2 is a high-performance, surface-mount bridge rectifier produced by ON Semiconductor, a leading name in the semiconductor industry. This robust electronic component is designed to offer efficient and reliable rectification of alternating current (AC) to direct current (DC), which is a critical function in a wide array of electronic devices and power supply applications.

Key Features

• High Current Capability: The DF005S2 is capable of handling a high forward surge current, making it suitable for applications with high surge demands.
• Low Forward Voltage Drop: This bridge rectifier offers a low forward voltage drop, which enhances power efficiency and reduces thermal stress on the component.
• Surface-Mount Package: Its surface-mount design allows for a compact footprint and compatibility with modern PCB assembly processes.
• High Reliability: Engineered with ON Semiconductor's quality materials and manufacturing processes, the DF005S2 provides reliable performance even in demanding conditions.
• RoHS Compliant: The device adheres to the Restriction of Hazardous Substances (RoHS) directive, making it environmentally friendly and safe for use in various markets.

Applications

The DF005S2 is versatile in its applications and is commonly found in:

• Power supplies
• Adapters
• Lighting systems
• Home appliances
• Consumer electronics

Technical Specifications

The DF005S2 bridge rectifier has a maximum repetitive peak reverse voltage of 50V and a forward current of 1A. Its operating junction temperature ranges from -55°C to +150°C, making it suitable for a variety of thermal environments.

Conclusion

ON Semiconductor's DF005S2 bridge rectifier is an excellent choice for designers and engineers looking for a reliable and efficient component for AC to DC conversion. Its high surge capability, low power loss, and compatibility with surface-mount technology make it a valuable addition to any power management system.
