The CM1457-04CP from ON Semiconductor is a robust ESD protection device designed to shield sensitive electronic components from electrostatic discharge (ESD) and other transient voltage events. This high-performance component is a must-have for safeguarding high-speed data lines and signal lines in various applications, including mobile phones, portable electronics, and computer interfaces.

Key Features

• ESD Protection: The CM1457-04CP is capable of withstanding ESD events up to ±15kV contact discharge and ±30kV air discharge, as per the IEC 61000-4-2 standard, providing exceptional protection for your electronic devices.
• Low Capacitance: With a low input capacitance of typically 0.6 pF, this device ensures minimal signal distortion, making it ideal for protecting high-speed data lines without compromising signal integrity.
• Multi-Line Protection: This component is designed to protect up to four lines, making it a compact and efficient solution for safeguarding multiple pathways simultaneously.
• Low Clamping Voltage: The CM1457-04CP offers a low clamping voltage, which enhances the protection level for sensitive circuits by limiting the voltage spike during a transient event.

Applications

The versatility of the CM1457-04CP makes it suitable for a wide range of applications, including but not limited to:

• USB 2.0 and 3.0 interfaces
• HDMI and DisplayPort interfaces
• Digital Visual Interface (DVI) applications
• Mobile handsets and smartphones
• Portable electronic devices
• Notebook and desktop computers

Package and Quality

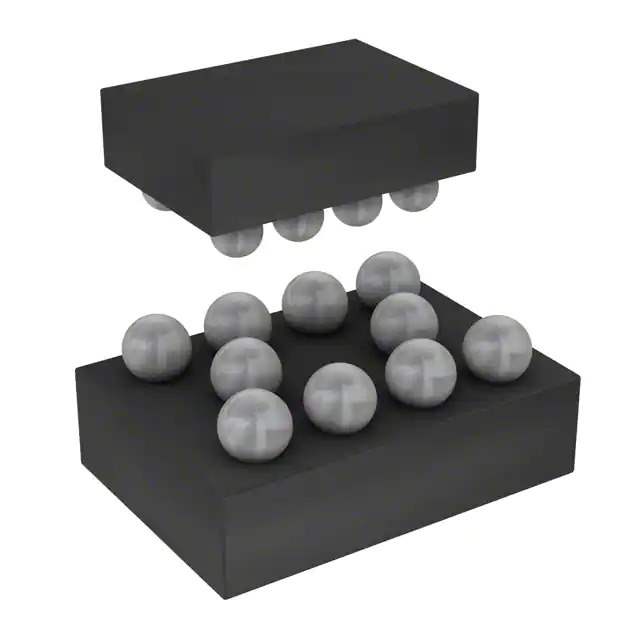

The CM1457-04CP is offered in a compact, lead-free, RoHS-compliant package, ensuring environmental sustainability while providing a space-saving footprint for PCB design. ON Semiconductor's commitment to quality ensures that each device meets the highest industry standards for reliability and performance.

Conclusion

In summary, the CM1457-04CP from ON Semiconductor is an outstanding solution for designers looking to enhance the ESD resilience of their electronic products. Its low capacitance, multi-line protection, and low clamping voltage make it an excellent choice for a variety of high-speed data and signal line applications.
