The CM1452-04CP from ON Semiconductor is a cutting-edge ESD protection device designed to safeguard high-speed data lines from electrostatic discharge (ESD) and other voltage-induced transient events. This device is particularly well-suited for applications that require the utmost in signal integrity and protection for sensitive components.

Key Features

• ESD Protection: The CM1452-04CP offers robust ESD protection exceeding the IEC61000-4-2 standard (Level 4), capable of withstanding ESD events up to ±15kV (air and contact discharge).
• Low Capacitance: With a low input capacitance of typically 0.6pF, this device ensures minimal signal distortion, making it ideal for protecting high-speed data lines without compromising data integrity.
• Channel Configuration: The device features a 4-channel configuration, providing simultaneous protection for multiple lines with a single compact component.

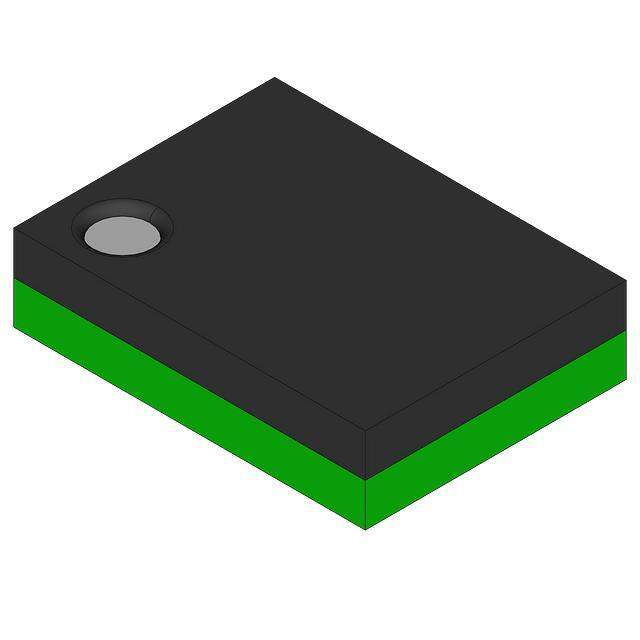

• Small Package Size: Housed in a space-saving, lead-free, RoHS-compliant, 10-pin UDFN package, the CM1452-04CP is designed for applications where board space is at a premium.

Applications

The CM1452-04CP is versatile and can be used in a variety of applications, including but not limited to:

• Mobile handsets and smartphones
• Portable electronics
• USB 2.0 power and data line protection
• High-speed data interfaces
• Multimedia devices

Technical Specifications

With an operating temperature range of -40°C to +85°C, the CM1452-04CP is built to perform reliably in diverse environments. Its low leakage current and fast response time ensure that your electronics are protected without affecting performance.

Quality and Reliability

ON Semiconductor is known for its commitment to quality, and the CM1452-04CP is no exception. This product is manufactured to the highest standards to ensure both reliability and functionality, providing peace of mind for designers and engineers integrating this ESD protection device into their systems.
