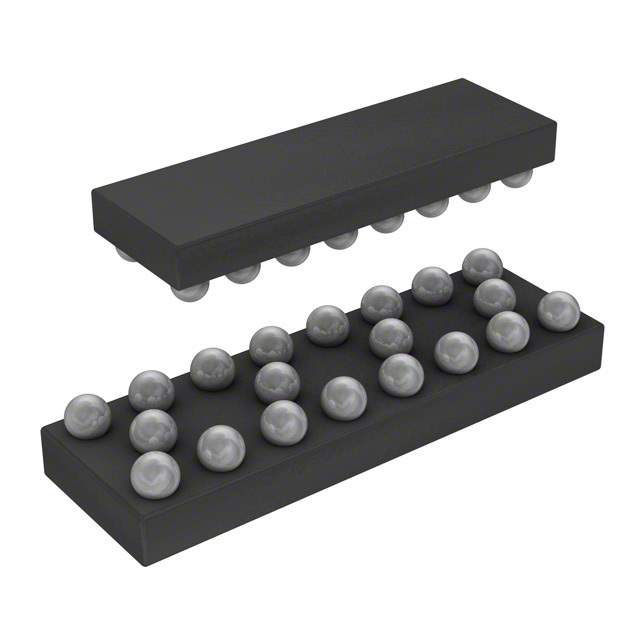

Product Overview: CM1426-08CP Low Capacitance ESD Protection Array

The CM1426-08CP from ON Semiconductor is a state-of-the-art low capacitance ESD protection array designed to safeguard high-speed data interfaces from electrostatic discharge (ESD) and other voltage-induced transient events. This robust device is an ideal solution for protecting systems with stringent space and performance requirements.

Key Features

• ESD Protection: Offers excellent ESD protection exceeding IEC 61000-4-2 Level 4 standards, withstanding ESD events up to ±15kV (air discharge) and ±8kV (contact discharge).
• Low Capacitance: Designed with a low loading capacitance of typically 0.6pF per I/O, making it suitable for high-speed data lines without compromising signal integrity.
• Channel Count: Integrates eight channels of ESD protection, ideal for multi-line applications such as USB 2.0, HDMI, and Ethernet interfaces.
• Low Leakage Current: Features a low leakage current of less than 0.5μA at 5V, which is beneficial for power-sensitive applications.
• Small Form Factor: Comes in a compact μDFN package, enabling it to fit into space-constrained designs while providing robust protection.

Applications

The CM1426-08CP is versatile and can be used in a variety of applications where ESD protection is critical. Some of the typical applications include:

• Mobile Phones and Smart Devices
• Portable Electronics
• USB Interfaces and Peripherals
• High-Speed Data Lines in Consumer Electronics
• Computers and Networking Equipment

Quality and Reliability

ON Semiconductor is known for its commitment to quality, and the CM1426-08CP is no exception. It is manufactured to high standards to ensure reliability and performance in demanding environments. The device's robust design helps extend the lifespan of the end products it is used in, making it a trusted choice for manufacturers around the globe.
